ATS616: Dynamic Self-Calibrating Peak-Detecting Differential Hall Effect Gear Tooth Sensor IC

These parts are in production but have been determined to be NOT FOR NEW DESIGN. This classification indicates that sale of this device is currently restricted to existing customer applications. The device should not be purchased for new design applications because obsolescence in the near future is probable. Samples are no longer available. Date of status change: December 2, 2014.

Recommended Substitutions: For existing customer transition, and for new customers or new applications, refer to the ATS617LSGTN-T.

The ATS616 gear-tooth sensor IC is a peak-detecting device that uses automatic gain control and an integrated capacitor to provide extremely accurate gear edge detection down to low operating speeds. Each package consists of a high-temperature plastic shell that holds together a samarium-cobalt pellet, a pole piece, and a differential open-collector Hall IC that has been optimized to the magnetic circuit. This small package can be easily assembled and used in conjunction with a wide variety of gear shapes and sizes.

The technology used for this circuit is Hall-effect based. The chip incorporates a dual-element Hall IC that switches in response to differential magnetic signals created by ferromagnetic targets. The sophisticated processing circuitry contains an A-to-D converter that self-calibrates (normalizes) the internal gain of the device to minimize the effect of air-gap variations. The patented peak-detecting filter circuit eliminates magnet and system offsets and has the ability to discriminate relatively fast changes such as those caused by tilt, gear wobble, and eccentricities. This easy-to-integrate solution provides first-tooth detection and stable operation to extremely low rpm. The ATS616 can be used as a replacement for the ATS612LSB, eliminating the external peak-holding capacitor needed by the ATS612LSB.

The ATS616 is ideal for use in systems that gather speed, position, and timing information using gear-tooth-based configurations. This device is particularly suited to those applications that require extremely accurate duty cycle control or accurate edge-detection, such as automotive camshaft sensing.

DATASHEETS
SAMPLE & BUY

Respin Sales, Inc. (Allegro & Sanken Semiconductors)
608 Westwood Office Park
Fredericksburg, VA 22401
Phone: 540-548-4979
Web: www.respinsales.com
Email: ronid@respinsales.com

If this is not your local representative, find your local sales rep here.

RECEIVE PRODUCT ALERTS
We'll notify you when there are updates to this product. Sign Up
  • Features and BenefitsFeatures and Benefits
  • PackagingPackaging
  • Technical DocsTechnical Docs
  • NewsNews
  • Self-calibrating for tight timing accuracy
  • First-tooth detection
  • Immunity to air gap variation and system offsets
  • Eliminates effects of signature tooth offsets
  • Integrated capacitor provides analog peak and valley information
  • Extremely low timing-accuracy drift with temperature changes
  • Large air gap capability
  • Small, integrated package
  • Optimized magnetic circuit
  • Undervoltage lockout (UVLO)
  • Wide operating voltage range

The ATS616 is provided in a 4-pin SIP that is Pb (lead) free, with a 100% matte tin plated leadframe (suffix SG).

SG SIP 4 pin





There are no news items available for this product.

Click the image to view larger

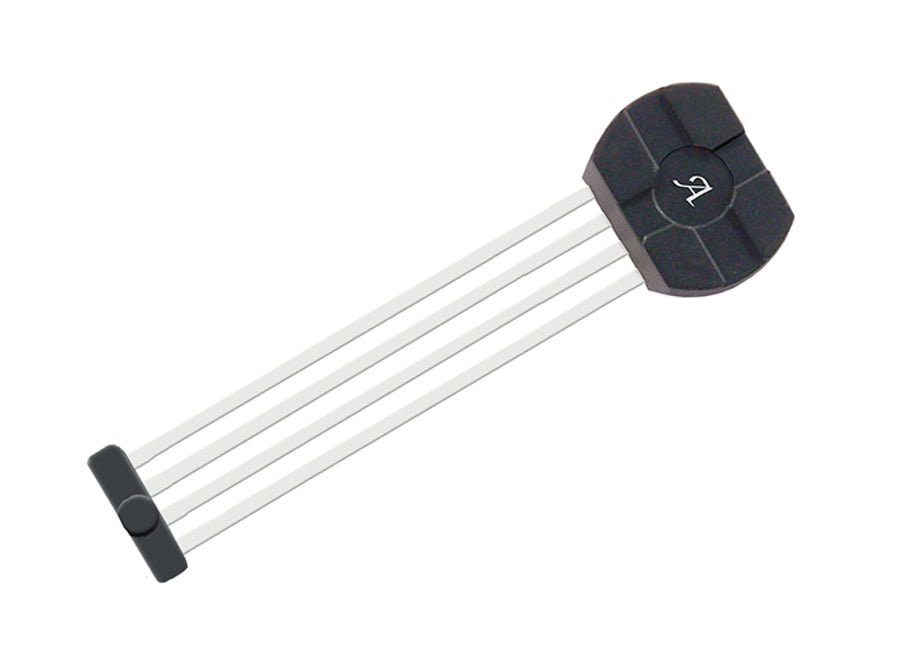

Product Image Functional Block Diagram

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant
Part Composition /
RoHS Data
Comments Samples Check
Distributor Stock
ATS616LSGTN-T 4-lead SIP -40°C to 150°C Yes View Data Not for new design Contact your
local sales rep
Check stock
