ATS651: Two-Wire Self-Calibrating Differential Speed and Direction Sensor IC with Vibration Immunity

The ATS651LSH is a mechatronics component with an integrated Hall-effect sensor IC and rare-earth pellet, providing an easy-to-use solution for speed and direction sensing applications. The solid thermoset molded plastic package contains a samarium cobalt pellet and a Hall-effect IC optimized to the magnetic circuit. This device has been designed specifically for high reliability in the harsh automotive environment. The IC employs patented algorithms for the special operational requirements of transmission applications.

This two-wire device communicates the speed and direction of a ferromagnetic target via a pulse width modulation (PWM) output protocol. The innovative dual differential detector scheme uses three Hall elements and two separate signal processing channels. This provides greater reliability than conventional designs. Because only one of the channels controls switching, the same edge of each tooth is used for determining output signals, in both forward and reverse target rotation, with direction information available on the first magnetic edge after a direction change.

The ATS651LSH is particularly adept at handling vibration without sacrificing maximum air gap capability or creating an erroneous “direction” pulse. Even the higher angular vibration caused by engine cranking is completely rejected by the device. The advanced vibration detection algorithms systematically calibrate the IC on the true rotation signals from the first three and a half teeth, not on vibration, thus always guaranteeing an accurate signal in running mode.

Patented running mode algorithms also protect against air gap changes, whether or not the target is in motion. Advanced signal processing and innovative algorithms make the ATS651LSH an ideal solution for a wide range of speed and direction sensing needs.

The device package is lead (Pb) free, with 100% matte tin plated leadframe.

Some restrictions may apply to certain types of sales. Contact factory for details.

DATASHEETS
SAMPLE & BUY

Allegro MicroSystems, LLC (Allegro & Sanken Semiconductors)
Phone: 267-373-9862
Fax: 215-957-5585
Cindy Painter, Email: cpainter@allegromicro.com

If this is not your local representative, find your local sales rep here.

RECEIVE PRODUCT ALERTS
We'll notify you when there are updates to this product. Sign Up
  • Features and BenefitsFeatures and Benefits
  • PackagingPackaging
  • Technical DocsTechnical Docs
  • NewsNews
  • Rotational direction detection
  • Fully optimized digital differential gear-tooth sensor IC
  • Single-chip sensing IC for high reliability
  • Small mechanical size (8 mm diameter × 5.5 mm vertical, flat-to-flat)
  • Internal current regulator for 2-wire operation
  • Automatic Gain Control (AGC) and reference adjust circuit
  • 3-bit factory trimmed for tight pulse width accuracy
  • True zero-speed operation
  • Wide operating voltage range
  • Undervoltage lockout
  • Defined power-on state
  • ESD and reverse polarity protection

The device package is lead (Pb) free, with 100% matte tin plated leadframe.

SH SIP 4 pin

There are no news items available for this product.

Click the image to view larger

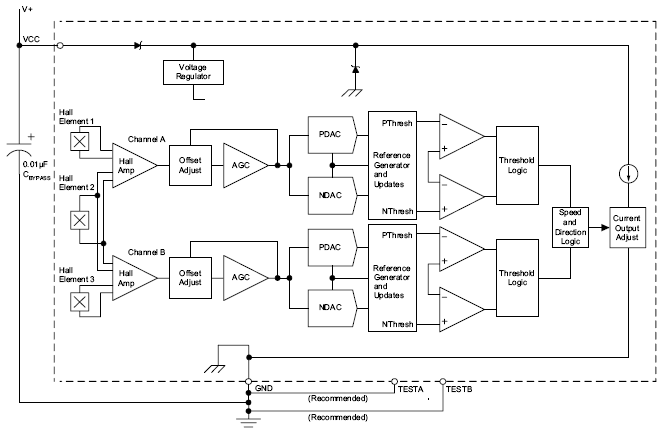

Functional Block Diagram

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant
Part Composition /
RoHS Data
Comments Samples Check
Distributor Stock
ATS651LSHTN-T 4-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep
Check stock
