A3906: Low Voltage Stepper and Single/Dual DC Motor Driver

Designed for pulse width modulated (PWM) control of low voltage stepper motors, and single and dual DC motors, the A3906 is capable of output currents up to 1 A per channel and operating voltages from 2.5 to 9 V.

The A3906 has an internal fixed off-time PWM timer that sets a peak current based on the selection of a current sense resistor. An overcurrent output flag is provided that notifies the user when the current in the motor winding reaches the peak current determined by the sense resistor. The fault output does not affect driver operation.

The A3906 is provided in a 20-contact, 4 mm × 4 mm, 0.75 mm nominal overall height QFN, with exposed pad for enhanced thermal dissipation. It is lead (Pb) free, with 100% matte tin leadframe plating.

DATASHEETS
RECEIVE PRODUCT ALERTS
We'll notify you when there are updates to this product. Sign Up
  • Features and BenefitsFeatures and Benefits
  • PackagingPackaging
  • Technical DocsTechnical Docs
  • NewsNews
  • 2.5 to 9 V operation
  • Internal PWM current limit control
  • Synchronous rectification for reduced power dissipation
  • Peak current output flag
  • Undervoltage lockout
  • Low RDS(on) outputs
  • Small package
  • Brake mode for DC motors
  • Sleep function
  • Crossover-current protection
  • Thermal shutdown

The A3906 is provided in a 20-contact, 4 mm × 4 mm, 0.75 mm nominal overall height QFN, with exposed pad for enhanced thermal dissipation. It is lead (Pb) free, with 100% matte tin leadframe plating.

 ES QFN 20-lead

There are no news items available for this product.

Click the image to view larger

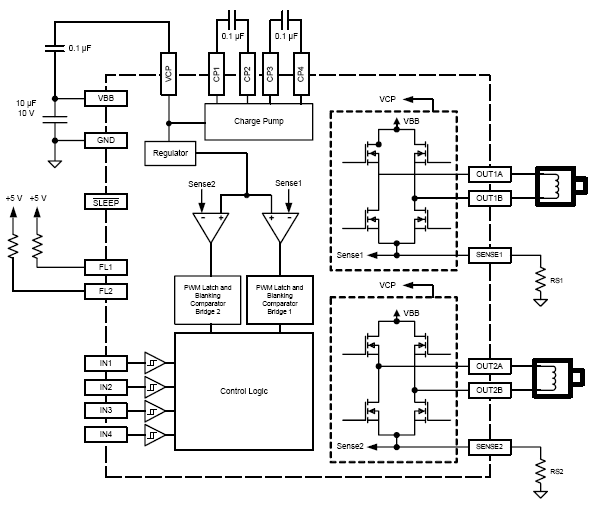

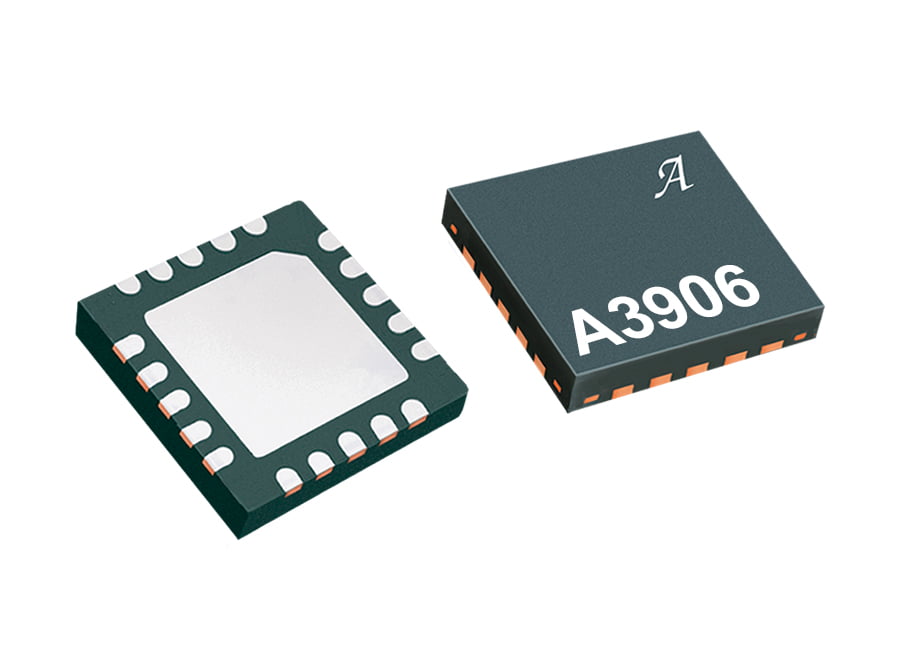

Product Image Functional Block Diagram

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant
Part Composition /
RoHS Data
Comments Samples Check
Distributor Stock
A3906SESTR-T 20-lead QFN -20°C to 85°C Yes View Data Contact your
local sales rep
Check stock
APEK3906SES-01-T DEMO BOARD -20°C to 85°C No -- Contact your
local sales rep
Check stock
