The A8504 is a multi-output WLED driver for medium display backlighting. The A8504 integrates a boost converter and eight current-sinks to provide a WLED/RGB backlight driver. The boost converter can provide output voltage up to 47 V. The flexible channel selection control and high voltage capability allow a wide range of LED backlight applications. The boost converter is a constant frequency current-mode converter. Each LED channel can sink 45 mA, and channels can be paralleled for higher currents. LED current can be controlled with external PWM duty cycle.
Applications include:
- Thin notebook displays
- LCD TV
- RGB backlight
- GPS systems
- Portable DVD players

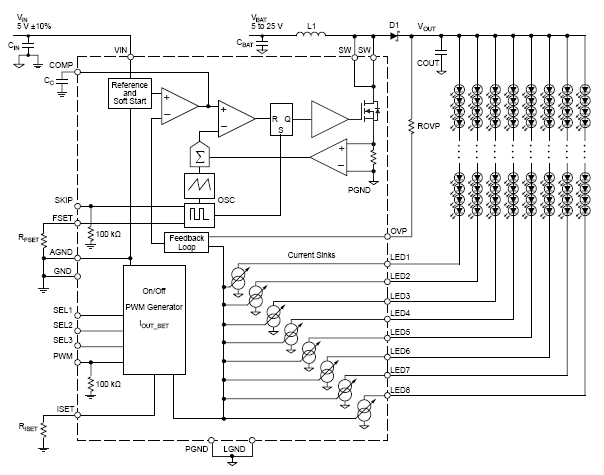

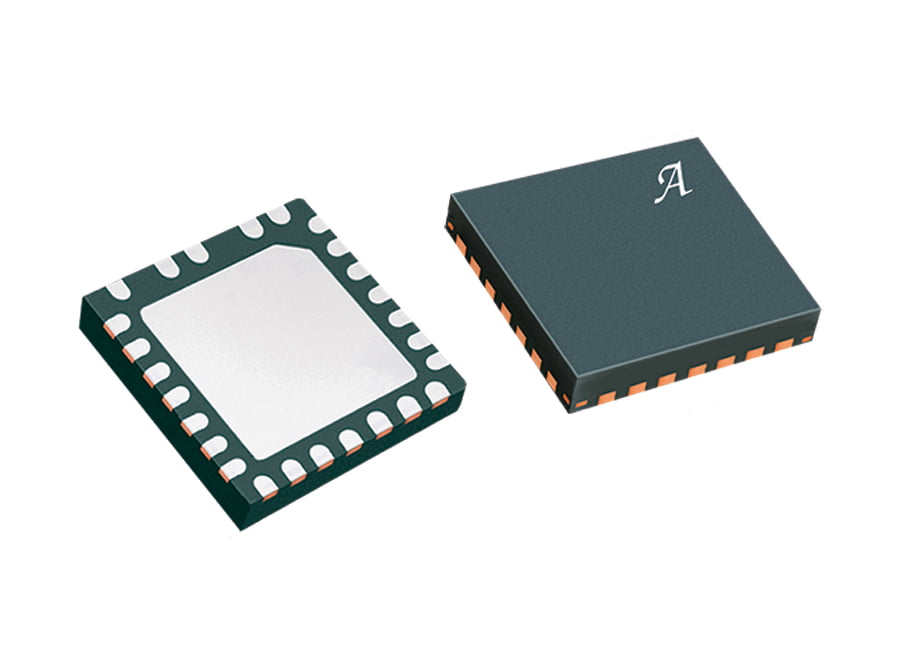

The A8504 is available in a 26 pin, 4 mm × 4 mm QFN/MLP package that is only 0.75 mm nominal in height.
