A6261: Protected LED Array Driver

The A6261 is a linear, programmable current regulator providing up to 100 mA from each of four outputs (LP and LY) to drive arrays of high brightness LEDs. The regulated LED current from each output, accurate to 5%, is set by a single reference resistor. Current matching in each string is better than 10% without the use of ballast resistors. Driving LEDs with constant current ensures safe operation with maximum possible light output. The A6261 in the LJ package offers two outputs with 100 mA and 200 mA maximum output current.

Output control is provided by an enable input, giving direct control for PWM applications. Outputs can be connected in parallel or left unused as required.

Short detection is provided to protect the LEDs and the A6261 during a short-to-ground at any LED output pin. An open LED in any of the strings disables all outputs, but can be overridden. Shorted LED output pins or open LEDs are indicated by a fault flag.

A temperature monitor is included to reduce the LED drive current if the chip temperature exceeds a thermal threshold.

The device packages are an 8-pin SOICN (suffix LJ), a 10-pin MSOP (LY), and a 16-pin TSSOP (LP), all with exposed pad for enhanced thermal dissipation. They are lead (Pb) free, with 100% matte tin leadframe plating.

Related Products



DATASHEETS
SAMPLE & BUY

Digi-Key Corporation (Distributor, Allegro & Sanken Products)
701 Brooks Avenue South
Thief River Falls, MN 56701
United States
Phone: 800-344-4539 or 218-681-6674
Fax: 218-681-3380
Web: www.digikey.com
Email: webmaster@digikey.com

Digi-Key Corporation (Distributor, Allegro & Sanken Products)
701 Brooks Avenue South
Thief River Falls, MN 56701
United States
Phone: 800-344-4539 or 218-681-6674
Fax: 218-681-3380
Web: www.digikey.com
Email: webmaster@digikey.com

Digi-Key Corporation (Distributor, Allegro & Sanken Products)
701 Brooks Avenue South
Thief River Falls, MN 56701
United States
Phone: 800-344-4539 or 218-681-6674
Fax: 218-681-3380
Web: www.digikey.com
Email: webmaster@digikey.com

Digi-Key Corporation (Distributor, Allegro & Sanken Products)
701 Brooks Avenue South
Thief River Falls, MN 56701
United States
Phone: 800-344-4539 or 218-681-6674
Fax: 218-681-3380
Web: www.digikey.com
Email: webmaster@digikey.com

Digi-Key Corporation (Distributor, Allegro & Sanken Products)
701 Brooks Avenue South
Thief River Falls, MN 56701
United States
Phone: 800-344-4539 or 218-681-6674
Fax: 218-681-3380
Web: www.digikey.com
Email: webmaster@digikey.com

Digi-Key Corporation (Distributor, Allegro & Sanken Products)
701 Brooks Avenue South
Thief River Falls, MN 56701
United States
Phone: 800-344-4539 or 218-681-6674
Fax: 218-681-3380
Web: www.digikey.com
Email: webmaster@digikey.com

If this is not your local representative, find your local sales rep here.

RECEIVE PRODUCT ALERTS
We'll notify you when there are updates to this product. Sign Up
  • Features and BenefitsFeatures and Benefits
  • PackagingPackaging
  • Technical DocsTechnical Docs
  • NewsNews
  • AEC Q-100 qualified
  • Total LED drive current up to 400 mA (LP and LY packages) or 300 mA (LJ)
  • Current shared equally up to 100 mA by up to 4 strings (LP and LY)
  • 6 to 50 V supply
  • Low dropout voltage
  • LED output short-to-ground and thermal protection
  • Disable on open LED detection option
  • Enable input for PWM control
  • Current slew rate limit during PWM
  • Current set by reference resistor
  • Automotive temperature range (K, –40°C to 150°C)

The device packages are an 8-pin SOICN (suffix LJ), a 10-pin MSOP (LY), and a 16-pin TSSOP (LP), all with exposed pad for enhanced thermal dissipation. They are lead (Pb) free, with 100% matte tin leadframe plating.

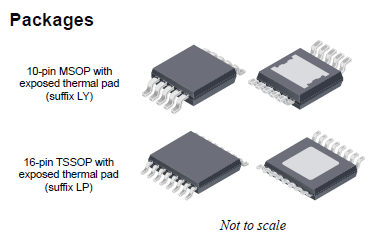

Packages

Typical Application

Click the image to view larger

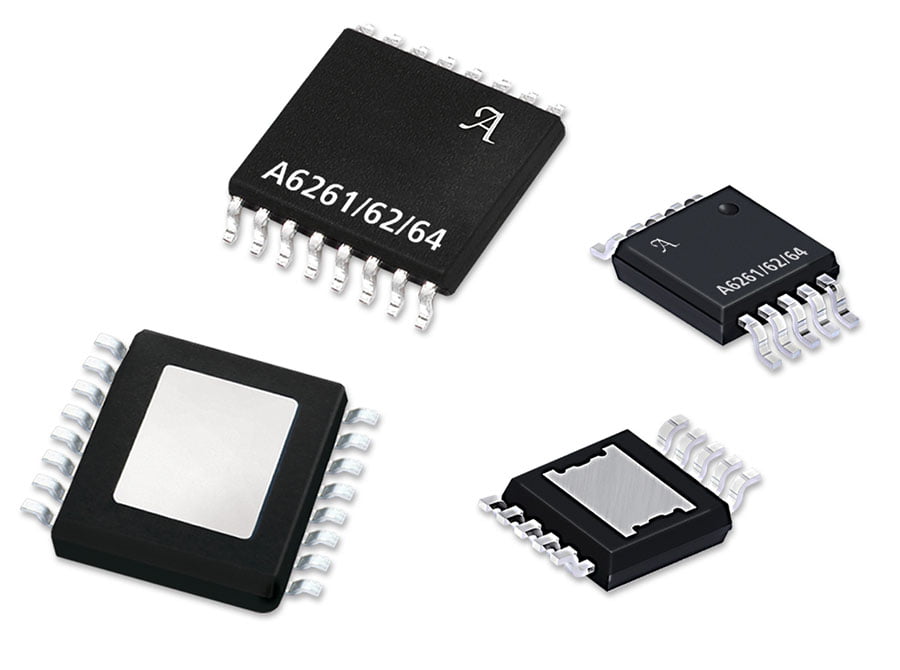

Product Image Functional Block Diagram

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant
Part Composition /
RoHS Data
Comments Samples Check
Distributor Stock
A6261ELPTR-T 16-lead TSSOP -40°C to 85°C Yes View Data Contact your
local sales rep
Check stock
A6261KLJTR-T 8-lead SOIC -40°C to 125°C Yes View Data Contact your
local sales rep
Check stock
A6261KLPTR-T 16-lead TSSOP -40°C to 125°C Yes View Data Contact your
local sales rep
Check stock
A6261KLYTR-T 10-lead MSOP -40°C to 125°C Yes View Data Contact your
local sales rep
Check stock
APEK6261KLP-01-T DEMO BOARD -40°C to 125°C No -- Contact your
local sales rep
Check stock
APEK6261KLY-01-T DEMO BOARD -40°C to 125°C No -- Contact your
local sales rep
Check stock
