A6266: Automotive High Current LED Controller

The A6266 is a boost converter controller, providing a programmable constant current output for driving high power LEDs in series. Driving the LEDs in series ensures identical currents and uniform brightness. For automotive applications, optimum performance is achieved when driving up to 15 LEDs at currents up to 1 A.

The A6266 provides a cost-effective solution using an external logic-level MOSFET and minimum additional external components. The maximum LED current is set with a single external sense resistor and can be modified using a current reference input. Direct PWM control is possible via the Enable input, which also provides a shutdown mode.

Integrated diagnostics and two fault outputs give indication of undervoltage, chip overtemperature, output open circuit, LED short circuit and LED undercurrent, and can be configured to provide short to supply and short to ground protection for the LED connections. A unique feature is the ability to detect one or more shorted LEDs.

The device is provided in a 16-pin TSSOP package with exposed thermal pad (suffix LP). It is lead (Pb) free, with 100% matte tin leadframe plating.

Applications

  • Automotive high power LED lighting systems
  • Fog lights, reversing lights, daytime running lights
  • Headlights

Related Parts

DATASHEETS
SAMPLE & BUY

Digi-Key Corporation (Distributor, Allegro & Sanken Products)
701 Brooks Avenue South
Thief River Falls, MN 56701
United States
Phone: 800-344-4539 or 218-681-6674
Fax: 218-681-3380
Web: www.digikey.com
Email: webmaster@digikey.com

Digi-Key Corporation (Distributor, Allegro & Sanken Products)
701 Brooks Avenue South
Thief River Falls, MN 56701
United States
Phone: 800-344-4539 or 218-681-6674
Fax: 218-681-3380
Web: www.digikey.com
Email: webmaster@digikey.com

Digi-Key Corporation (Distributor, Allegro & Sanken Products)
701 Brooks Avenue South
Thief River Falls, MN 56701
United States
Phone: 800-344-4539 or 218-681-6674
Fax: 218-681-3380
Web: www.digikey.com
Email: webmaster@digikey.com

Digi-Key Corporation (Distributor, Allegro & Sanken Products)
701 Brooks Avenue South
Thief River Falls, MN 56701
United States
Phone: 800-344-4539 or 218-681-6674
Fax: 218-681-3380
Web: www.digikey.com
Email: webmaster@digikey.com

Digi-Key Corporation (Distributor, Allegro & Sanken Products)
701 Brooks Avenue South
Thief River Falls, MN 56701
United States
Phone: 800-344-4539 or 218-681-6674
Fax: 218-681-3380
Web: www.digikey.com
Email: webmaster@digikey.com

Digi-Key Corporation (Distributor, Allegro & Sanken Products)
701 Brooks Avenue South
Thief River Falls, MN 56701
United States
Phone: 800-344-4539 or 218-681-6674
Fax: 218-681-3380
Web: www.digikey.com
Email: webmaster@digikey.com

If this is not your local representative, find your local sales rep here.

RECEIVE PRODUCT ALERTS
We'll notify you when there are updates to this product. Sign Up
  • Features and BenefitsFeatures and Benefits
  • PackagingPackaging
  • Technical DocsTechnical Docs
  • NewsNews
  • AEC Q100 Grade 0 Automotive Qualified
  • Constant current LED drive
  • 5 to 50 V supply
  • Boost mode
  • Drives up to 15 LEDs in series
  • Programmable switching frequency 100 to 700 kHz
  • Open LED overvoltage indication and protection
  • Single and multiple LED short indication
  • LED short to ground and supply protection
  • PWM dimming control

The device is provided in a 16-pin TSSOP package with exposed thermal pad (suffix LP). It is lead (Pb) free, with 100% matte tin leadframe plating.

Package

Click the image to view larger

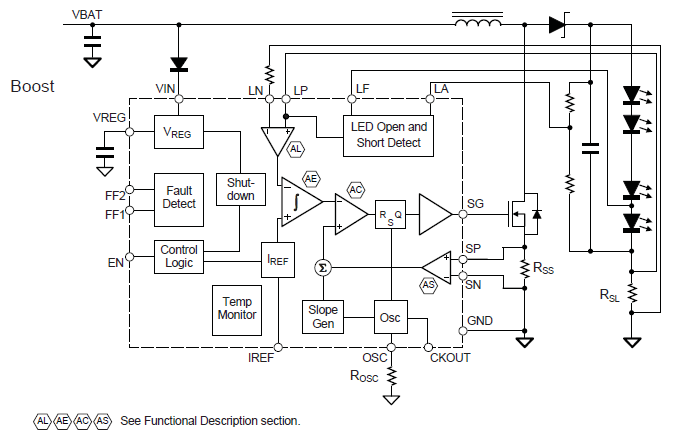

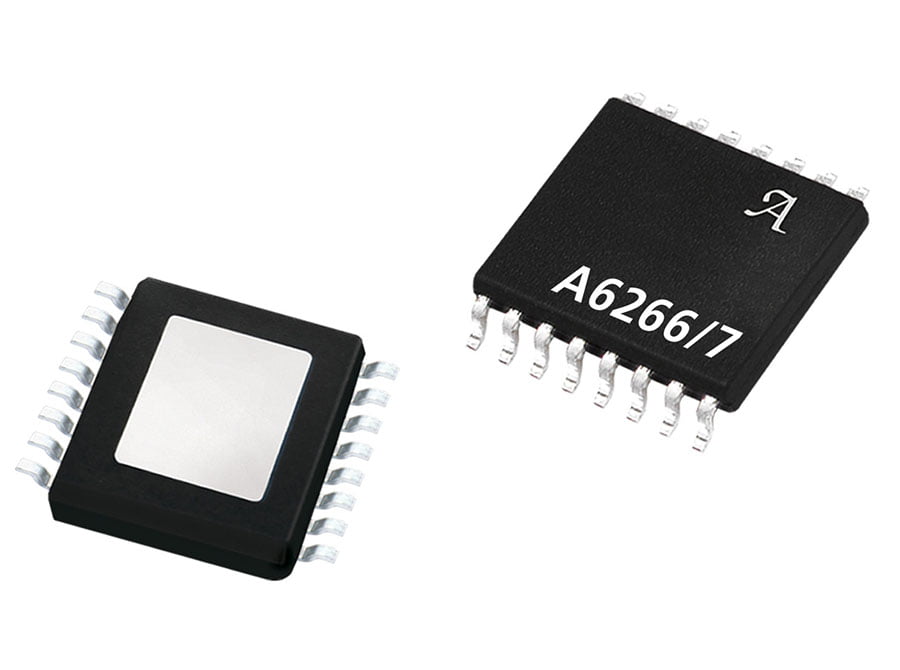

Product Image Functional Block Diagram Typical Application

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant
Part Composition /
RoHS Data
Comments Samples Check
Distributor Stock
A6266KLPTR-T 16-lead TSSOP -40°C to 125°C Yes View Data Contact your
local sales rep
Check stock
