The SX68000M series provides the solution for controlling 3-phase full bridges that utilize MOSFETs rated at 250 V/2 A, 500 V/1.5 A, or 500 V/2.5 A.
The IC includes in a single package: protection functions such as UVLO (protection circuit for controlling power supply voltage drop), OCP (overcurrent protection), TSD (thermal shutdown), and OCL (current limiting), and a pre-driver with FO (Fault Output) terminal and bootstrap diodes with limit resistors.

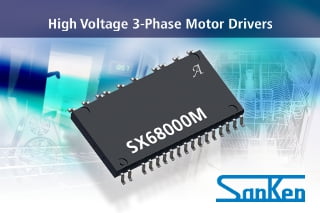

The SX68000M series is packaged in a fully-molded SOP with 27 pins at 1.2 mm pitch. Body size: 22 × 14.1 × 2.1 mm.
