SI-8050JD: Step-Down to 5.0 V, 1.5 A DC/DC Converter

Designed to meet high-current requirements at high efficiency in industrial and consumer applications; embedded core, memory, or logic supplies; TVs, VCRs, and office or telecommunications equipment, the SI-8050JD dc/dc step-down (buck) converter offers a constant 125 kHz switching frequency essential for low EMI noise. The npn switch is included on the die along with the oscillator, control, and logic circuitry requiring only four external components for a regulated 5.0 V output at up to 1.5 A.

A wide input voltage range and integrated thermal and overcurrent protection enhance overall system reliability. Reference accuracy and excellent temperature characteristics are provided. An output-enable input gives the designer complete control over power up, standby, or power down.

This device is supplied in a 5-lead surface-mount plastic package (TO-263) with ground tab to provide a low-resistance path for maximum heat dissipation. A similar device in a flange-mounted (TO-220-style) high-power package is the SI-8050JF.

DATASHEETS
RECEIVE PRODUCT ALERTS
We'll notify you when there are updates to this product. Sign Up
  • Features and BenefitsFeatures and Benefits
  • PackagingPackaging
  • Technical DocsTechnical Docs
  • NewsNews
  • 7 V to 40 V Input Range
  • 1.5 A Output Current at 5.0 V
  • 2% Output Voltage Tolerance
  • Foldback Current Limiting
  • Constant 125 kHz Switching Frequency
  • 200 µA Maximum Standby Current
  • Soft Start Prevents Supply Voltage Dip
  • Remote Voltage Sensing
  • Exposed Pad for Superior Heat Dissipation
  • Thermal Protection

There are no news items available for this product.

Click the image to view larger

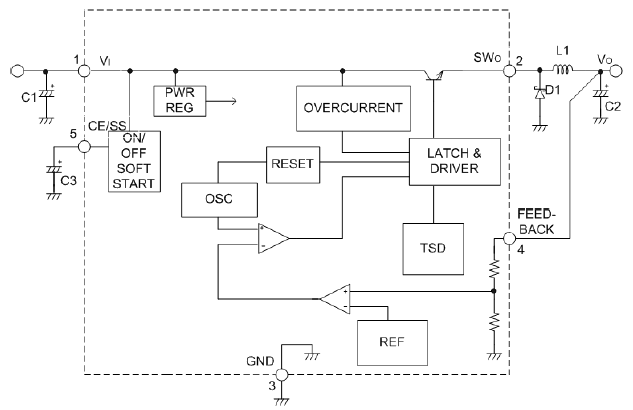

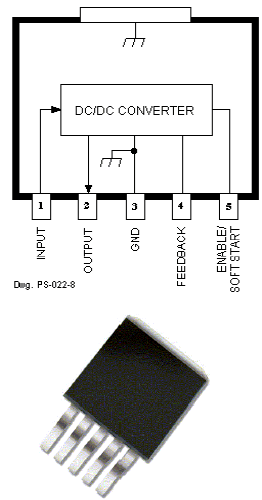

Functional Block Diagram Package and Pinout Diagram

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant
Part Composition /
RoHS Data
Comments Samples Check
Distributor Stock
SI-8050JD 5-lead TO-263 -40°C to 125°C Yes View Data New Contact your
local sales rep
Check stock
