The Allegro® ACS716 current sensor provides economical and
precise means for current sensing applications in industrial,
commercial, and communications systems. The device is offered
in a small footprint surface mount package that allows easy
implementation in customer applications.

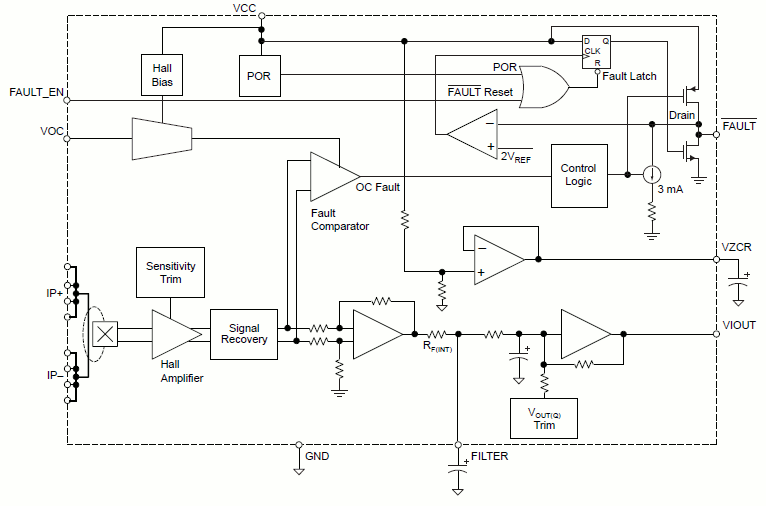

The ACS716 consists of a precision linear Hall sensor integrated
circuit with a copper conduction path located near the surface
of the silicon die. Applied current flows through the copper
conduction path, and the analog output voltage from the Hall
sensor linearly tracks the magnetic field generated by the
applied current. The accuracy of the ACS716 is maximized
with this patented packaging configuration because the Hall
element is situated in extremely close proximity to the current
to be measured.
High level immunity to current conductor dV/dt and stray
electric fields, offered by Allegro proprietary integrated shield
technology, guarantees low ripple at output and low offset drift
in high-side, high voltage applications.

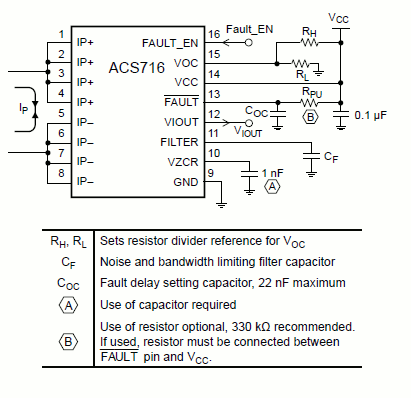

The voltage on the Overcurrent Input (VOC pin) allows
customers to define an overcurrent fault threshold for the device.
When the current flowing through the copper conduction path
(between the IP+ and IP– pins) exceeds this threshold, the open
drain Overcurrent Fault pin will transition to a logic low state.
Factory programming of the linear Hall sensor inside of the
ACS716 results in exceptional accuracy in both analog and
digital output signals.
The internal resistance of the copper path used for current
sensing is typically 1 mΩ, for low power loss. Also, the current
conduction path is electrically isolated from the low voltage
sensor inputs and outputs. This allows the ACS716 family of sensors
to be used in applications requiring electrical isolation, without the
use of opto-isolators or other costly isolation techniques.

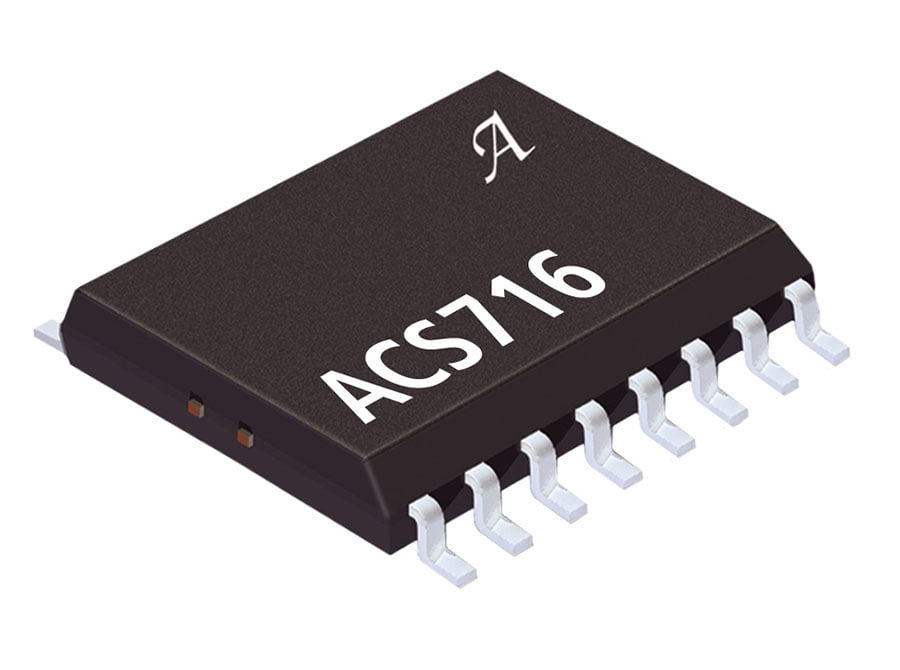

The ACS716 is provided in a small, surface mount SOIC16 package.
The leadframe is plated with 100% matte tin, which is compatible
with standard lead (Pb) free printed circuit board assembly processes.
Internally, the device is Pb-free, except for flip-chip high-temperature
Pb-based solder balls, currently exempt from RoHS. The device is
fully calibrated prior to shipment from the factory.
Applications include:
- Motor control and protection
- Load management and overcurrent detection
- Power conversion and battery monitoring / UPS systems
