A1220, A1221, A1222, and A1223: Chopper-Stabilized Precision Hall-Effect Latches

The A1220, A1221, A1222, and A1223 Hall-effect sensor ICs are extremely temperature-stable and stress-resistant devices especially suited for operation over extended temperature ranges to 150°C. Superior high-temperature performance is made possible through dynamic offset cancellation, which reduces the residual offset voltage normally caused by device overmolding, temperature dependencies, and thermal stress. Each device includes on a single silicon chip a voltage regulator, Hall-voltage generator, small-signal amplifier, chopper stabilization, Schmitt trigger, and a short-circuit protected open-drain output to sink up to 25 mA. A south pole of sufficient strength turns the output on. A north pole of sufficient strength is necessary to turn the output off.

An onboard regulator permits operation with supply voltages of 3 to 24 V. The advantage of operating down to 3 V is that the device can be used in 3 V applications or with additional external resistance in series with the supply pin for greater protection against high voltage transient events.

Two package styles provide magnetically optimized packages for most applications. Package type LH is a modified 3-pin SOT23W surface-mount package, while UA is a three-pin ultra-mini SIP for through-hole mounting. Both packages are lead (Pb) free, with 100% matte-tin-plated leadframes.

ASIL LogoThe A1220, A1221, A1222, and A1223 comply with the international standard for automotive functional safety, ISO 26262, as Quality Managed (QM) products. The devices are each classified as a SEooC (Safety Element out of Context) and can be easily integrated into safety-critical systems requiring higher ASIL ratings that incorporate external diagnostics or use measures such as redundancy. Safety documentation will be provided to support and guide the integration process. For further information, contact your local Allegro field applications engineer or sales representative.

SAMPLE & BUY

Astrorep Inc. (Allegro and Sanken Semiconductors, Sanken Power Supplies)
141 John Street, Suite 300
Babylon, NY 11702
Phone: (631)422-2500
Fax: (631)422-2504
Web: www.astrorepinc.com
Email: donna.tweedy@astrorepinc.com

If this is not your local representative, find your local sales rep here.

RECEIVE PRODUCT ALERTS
We'll notify you when there are updates to this product. Sign Up
  • Features and BenefitsFeatures and Benefits
  • PackagingPackaging
  • Technical DocsTechnical Docs
  • NewsNews
  • AEC-Q100 automotive qualified
  • Symmetrical latch switchpoints
  • Resistant to physical stress
  • Superior temperature stability
  • Output short-circuit protection
  • Operation from unregulated supply down to 3 V
  • Reverse battery protection
  • Solid-state reliability
  • Small package sizes



Packages

There are no news items available for this product.

Click the image to view larger

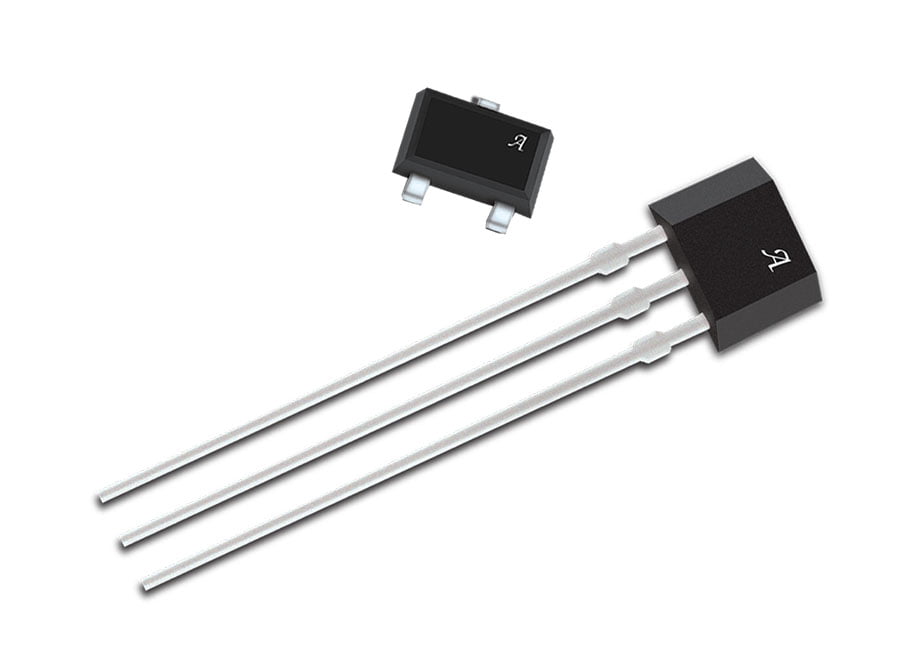

A1220-1 Product Image Functional Block Diagram

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant
Part Composition /
RoHS Data
Comments Samples Check
Distributor Stock
A1220ELHLT-T 3-lead SOT -40°C to 85°C Yes View Data Contact your
local sales rep
Check Stock
A1220ELHLX-T 3-lead SOT -40°C to 85°C Yes View Data Contact your
local sales rep
Check Stock
A1220EUA-T 3-lead SIP -40°C to 85°C Yes View Data Contact your
local sales rep
Check Stock
A1220LLHLT-T 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check Stock
A1220LLHLX-T 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check Stock
A1220LUA-T 3-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep
Check Stock
A1221ELHLT-T 3-lead SOT -40°C to 85°C Yes View Data Contact your
local sales rep
Check Stock
A1221ELHLX-T 3-lead SOT -40°C to 85°C Yes View Data Contact your
local sales rep
Check Stock
A1221EUA-T 3-lead SIP -40°C to 85°C Yes View Data Contact your
local sales rep
Check Stock
A1221LLHLT-T 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check Stock
A1221LLHLX-T 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check Stock
A1221LUA-T 3-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep
Check Stock
A1222ELHLT-T 3-lead SOT -40°C to 85°C Yes View Data Contact your
local sales rep
Check Stock
A1222ELHLX-T 3-lead SOT -40°C to 85°C Yes View Data Contact your
local sales rep
Check Stock
A1222EUA-T 3-lead SIP -40°C to 85°C Yes View Data Contact your
local sales rep
Check Stock
A1222LLHLT-T 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check Stock
A1222LLHLX-T 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check Stock
A1222LUA-T 3-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep
Check Stock
A1223ELHLT-T 3-lead SOT -40°C to 85°C Yes View Data Contact your
local sales rep
Check Stock
A1223ELHLX-T 3-lead SOT -40°C to 85°C Yes View Data Contact your
local sales rep
Check Stock
A1223EUA-T 3-lead SIP -40°C to 85°C Yes View Data Contact your
local sales rep
Check Stock
A1223LLHLT-T 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check Stock
A1223LLHLX-T 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check Stock
A1223LUA-T 3-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep
Check Stock
