SI-7321M: Unipolar 2-Phase Microstepping Motor Driver IC

The SI-7321M constant-current mode motor driver IC features efficient unipolar driver design for full- and half-step operation, and 1/4 , 1/8 , and 1/16 microstepping. The clock-in type input interface allows simplified control logic, with the flexibility of sequencer timing using either rising Clock edge only or both rising and falling edges. Additional flexibility is provided by user-configurable blanking time, and load circuit short or open protection (patent pending). Along with inputs for built-in sense current detection, these features minimize power losses.

The device has a multi-chip internal structure for lower thermal resistance. The control IC (MIC) and the four power elements (MOSFET) are all separate ICs. The package (HSOP) provides wide output terminals at each corner, further enhancing device thermal dissipation.

The built-in excitation distribution circuit (sequencer) allows motor control using only the Clock signal for simple operations (forward, reverse, hold), with motor speed control by frequency input into Clock pin, and rotation direction control by a dedicated logic input. This eliminates logic signal lines required for conventional phase-input methods, and reduces demand on heavily-used CPUs.

Low-power sleep mode, as well as reduced power during PWM off-time maximize energy savings.

DATASHEETS
RECEIVE PRODUCT ALERTS
We'll notify you when there are updates to this product. Sign Up
  • Power supply voltage, VBB , 46 V maximum, 10 to 44 V normal operating range
  • 18.6 × 9.9 mm package footprint
  • Logic supply voltage, VDD , 3.3 to 5.5 V
  • Maximum output current: 1.5 A
  • Four NMOS output MOSFETs, R DS(on) = 0.25 Ω typical
  • Built-in sequencer
  • Simplified clock-in stepping control
  • Full- and half-stepping and 1/4 , 1/8 , and 1/16 microstepping
  • Surface mount type 44-pin molded package for automatic assembly and low profile
  • Self-excitation PWM current control with fixed off-time
  • Microstepping off-time adjusted automatically by step reference current ratio
  • Built-in synchronous rectifying circuit reduces losses at PWM switch-off
  • Synchronous PWM chopping function prevents motor noise in Hold mode
  • Built-in current sensing for each phase, set externally
  • Dual sleep modes reduce IC input current in stand-by state
  • Built-in protection against motor coil opens and shorts
  • User-configurable operation options, set by external logic input:
    • Blanking time: 1.8 μs or 3.6 μs
    • Sequencer timing on Clock input rising (POS) edge or both rising and falling (POS/NEG) edges
    • Protection features enable or disable

    Package

    Click the image to view larger

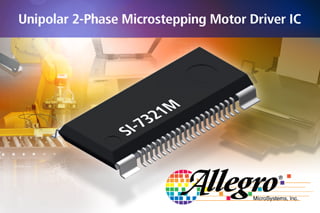

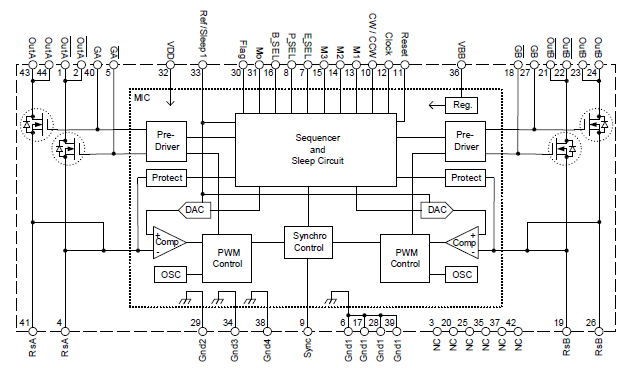

    Product Image Functional Block Diagram

    Part Number Specifications and Availability

    Part Number Package Type Temperature RoHS
    Compliant
    Part Composition /
    RoHS Data
    Comments Samples Check
    Distributor Stock
    SI-7321M 44-lead HSOP -20 ° C to 85 ° C Yes -- New Contact your
    local sales rep
    Check
    Distributor Stock
