SLA7070M Series: Motor Driver IC Family

The SLA7070M series motor driver ICs feature unipolar drivers. The clock-in type input interface allows simplified control logic, and options for built-in sense current detection and load circuit short or open protection (patent pending) provide lower loss, and lower thermal resistance. All products in the SLA7070M series are pin-compatibile, supporting rapid design of application variants.

The built-in excitation distribution circuit (sequencer) allows motor control using only the CLOCK signal for simple operations (rotate/stop), with motor speed control by frequency input into CLOCK pin. This eliminates logic signal lines required for conventional phase-input methods, and reduces demand on heavily-used CPUs.

Contact Allegro for application information and additional information on device performance and logic.

RECEIVE PRODUCT ALERTS
We'll notify you when there are updates to this product. Sign Up
  • Features and BenefitsFeatures and Benefits
  • PackagingPackaging
  • Technical DocsTechnical Docs
  • NewsNews
  • Power supply voltages, VBB: 46 V(max.), 10 to 44 V normal operating range
  • Logic supply voltages, VDD: 3.0 to 5.5 V
  • Maximum output currents: 1 A, 1.5 A, 2 A, 3 A
  • Built-in sequencer
  • Simplified clock-in stepping control
  • Both full/half-stepping (SLA7070M to SLA7073M) and microstepping (SLA7075M to SLA7078M)
  • Built-in sense resistor, RSInt
  • All variants are pin-compatible for enhanced design flexibility
  • ZIP type 23-pin molded package (SLA package)
  • Self-excitation PWM current control with fixed off-time
  • Built-in synchronous rectifying circuit reduces losses at PWM off
  • Synchronous PWM chopping function prevents motor noise in Hold mode
  • Sleep mode for reducing the IC input current in stand-by state
  • Built-in protection circuitry against motor coil opens/shorts option available

There are no news items available for this product.

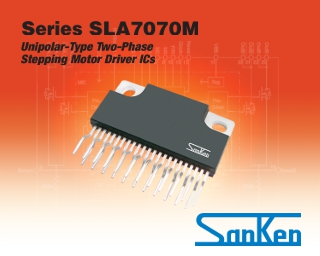

Click the image to view larger
Product Image Package

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant
Part Composition /
RoHS Data
Comments Samples Check
Distributor Stock
SLA7070MPR 23-lead SIP -20°C to 85°C Yes View Data New Contact your
local sales rep
Check Stock
SLA7070MR 23-lead SIP -20°C to 85°C Yes View Data New Contact your
local sales rep
Check Stock
SLA7071MPR 23-lead SIP -20°C to 85°C Yes View Data New Contact your
local sales rep
Check Stock
SLA7071MR 23-lead SIP -20°C to 85°C Yes View Data New Contact your
local sales rep
Check Stock
SLA7072MPR 23-lead SIP -20°C to 85°C Yes View Data New Contact your
local sales rep
Check Stock
SLA7072MR 23-lead SIP -20°C to 85°C Yes View Data New Contact your
local sales rep
Check Stock
SLA7073MPR 23-lead SIP -20°C to 85°C Yes View Data New Contact your
local sales rep
Check Stock
SLA7073MR 23-lead SIP -20°C to 85°C Yes View Data New Contact your
local sales rep
Check Stock
SLA7075MPR 23-lead SIP -20°C to 85°C Yes View Data New Contact your
local sales rep
Check Stock
SLA7075MR 23-lead SIP -20°C to 85°C Yes View Data New Contact your
local sales rep
Check Stock
SLA7076MPR 23-lead SIP -20°C to 85°C Yes View Data New Contact your
local sales rep
Check Stock
SLA7076MR 23-lead SIP -20°C to 85°C Yes View Data New Contact your
local sales rep
Check Stock
SLA7077MPR 23-lead SIP -20°C to 85°C Yes View Data New Contact your
local sales rep
Check Stock
SLA7077MR 23-lead SIP -20°C to 85°C Yes View Data New Contact your
local sales rep
Check Stock
SLA7078MPR 23-lead SIP -20°C to 85°C Yes View Data New Contact your
local sales rep
Check Stock
SLA7078MR 23-lead SIP -20°C to 85°C Yes View Data New Contact your
local sales rep
Check Stock
