DC to 5MHz, High-Accuracy Current Sensor with Reference or Fault Output

ACS37030, ACS37032

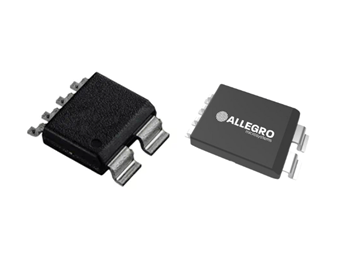

The ACS37030/2 current sensors provide precise current measurements across a wide frequency range (DC to 5MHz) using both Hall-effect and inductive sensing. The ACS37030 offers a reference voltage output, while the ACS37032 provides a fault output for overcurrent detection.

View Datasheet

Evaluation Board

Navigate

Product Detail
Availability
Documentation and Resources

Top Features

Typical Applications

Packaging

High bandwidth, 5 MHz analog output
VREF output voltage for differential routing in noisy application environments (ACS37030)
FAULT output for fast open drain overcurrent detection (ACS37032)
±2% sensitivity error across temperature
LZ fused-lead SOIC-6 package option supports 840 VRMS basic isolation and 420 VRMS reinforced isolation
MY widebody fused-lead SOIC-6 package option supports 1167 VRMS basic isolation and 592 VRMS reinforced isolation
AEC-Q100 Grade 0 qualified

xEV On-board charger
xEV DC-DC
Server power supply/datacenter power supply
Solar DC-DC

The ACS37030 and the ACS37032 are offered in two fused-lead SOIC-6 package options. The LZ package has a lower conductor resistance versus standard SOIC-8 packages and supports higher isolation of up to 840VRMS basic isolation or 420VRMS reinforced isolation. The MY package is a widebody SOIC-6 package that supports a similar reinforced isolation rating to comparable SOICW-16 packages in just half the size

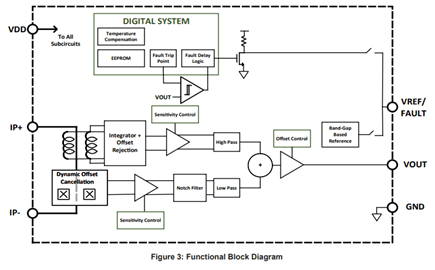

DC to 5 MHz Bandwidth, Galvanically Isolated, High-Accuracy Current Sensor IC with Reference Output (ACS37030) or Fault (ACS37032) Functional Block Diagram

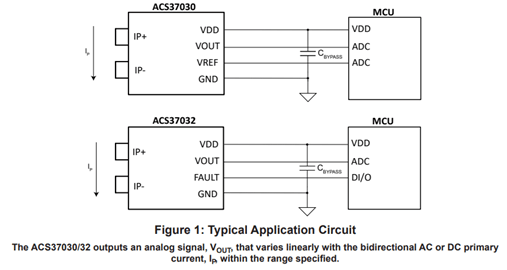

DC to 5 MHz Bandwidth, Galvanically Isolated, High-Accuracy Current Sensor IC with Reference Output (ACS37030) or Fault (ACS37032) Typical Application Diagram

Part Number Specifications and Availability

ACS37030/2 Product Overview

The ACS37030 and ACS37032 are fully integrated current sensor IC that senses current flowing through the primary conductor. There are two signal paths utilized, a Hall-effect element path to capture DC and low frequency current information, and an inductive coil path to capture high frequency current information.
