ACS760: 12 V High-Side Hot-Swap Hall Effect Based Current Monitor (Discontinued)

DISCONTINUED: This device is no longer in production. The device should not be purchased for new design applications. Samples are no longer available. Date of status change: September 13th, 2022

Recommended Substitutions: For existing customer transition, and for new customers or new applications, refer to the ACS726.

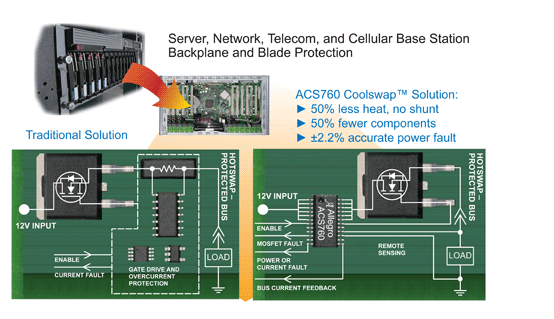

The ACS760 combines Allegro Hall-effect current sense technology with a hot-swap controller resulting in a more efficient integrated controller for 12 V applications. By eliminating the need for a shunt resistor, the I²R losses in the power path are reduced.

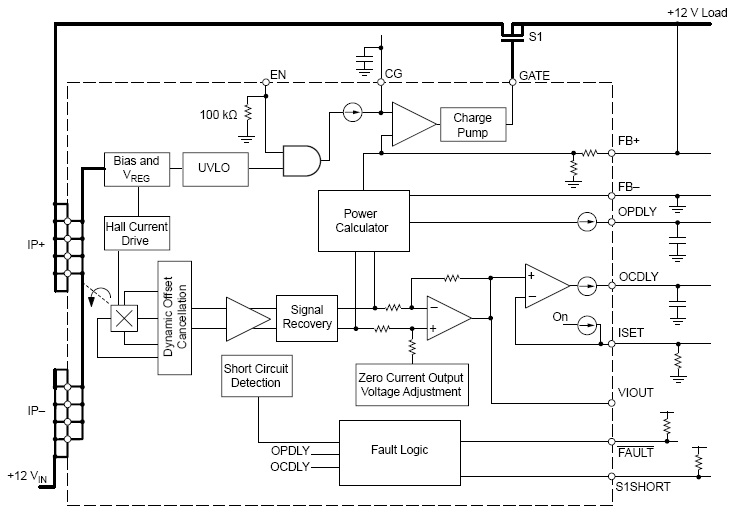

When the ACS760 is externally enabled, and the voltage rail is above the internal UVLO threshold, the internal charge pump drives the gate of the external FET. When a fault is detected, the gate is disabled while simultaneously alerting the application that a fault has occurred.

The integrated protection in the ACS760 incorporates three levels of fault protection, which includes a Power Fault with user-programmable delay, a user-programmable Overcurrent Fault threshold with programmable delay, and Short Circuit protection, which disables the gate in less then 2 µs.

Additionally, in the event the external high-side FET fails short, the ACS760 detects the S1 Short failure and immediately disables the gate and alerts the host system. Unlike the three protection faults, cycling the EN pin does not reset the S1 Short failure. Power to the device must be cycled.
