ATS679: Self-Calibrating TPOS Camshaft Speed Sensor

Description

The ATS679LSL is a True Power-On State camshaft sensor incorporating a non-rare-earth back-biasing magnet, advanced fully synchronous digital IC, and EMC protection circuit all in a single sensing solution.

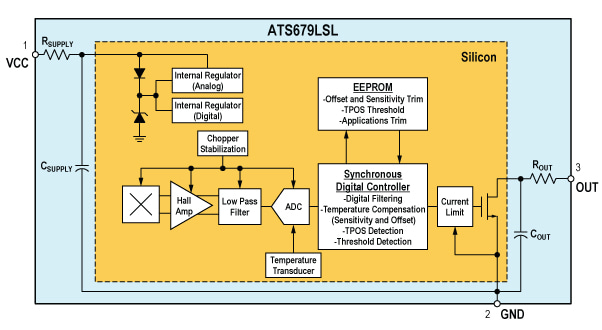

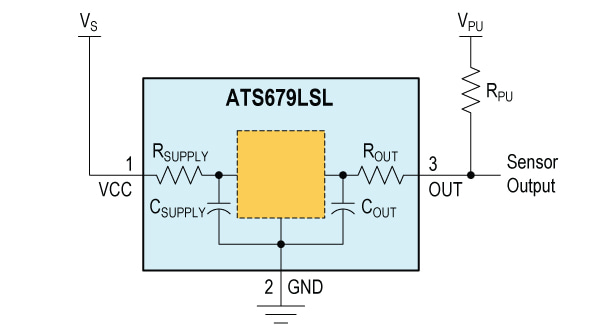

The ATS679 incorporates a single element Hall IC with an optimized custom magnetic circuit that switches in response to magnetic signals induced by a ferromagnetic target. The IC contains a sophisticated digital circuit designed to match the temperature behavior of the IC with the integrated magnet. Signal processing is used to provide zero-speed performance independent of air gap and is designed for the typical operating conditions found in automotive camshaft sensing applications. The resulting output of the device is a digital representation of the ferromagnetic target profile.

The ATS679 is provided in a 3-pin SIP package (SL) that is lead (Pb) free, with 100% matte-tin leadframe plating

Top Features

• Fully synchronous digital logic with Scan Path and IDDQ testing for high quality and reliability
• Chopper stabilization reduces offset drift
• Absolute zero-speed performance
• SL package provides a fully integrated solution with a non-rare-earth back-biasing magnet and EMC protection circuit
• True target state recognition at device power-on (TPOS)
• EEPROM programming for performance optimization, temperature compensation, and production traceability

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant
Part Composition /
RoHS Data
Comments Samples Check Stock
ATS679LSLTN-CUST-1-T n/a -20°C to 85°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
ATS679LSLTN-HT-T 3-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
ATS679LSLTN-LT-T 3-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock

Allegro 的产品不允许在任何由于 Allegro 产品的合理故障造成人身伤害的装置或系统中使用,包括但不限于生命支持装置或系统。

Packaging

 3-pin SIP (suffix SL)
