AC-Coupled Differential Hall-Effect Sensor IC with Integrated Filter Capacitor

A17201

The A17201 simplifies speed sensing with its integrated filter capacitor, eliminating the need for external components. This AC-coupled Hall-effect sensor offers differential sensing for vibration immunity and a wide operating range for robust performance.

* Note: If you have issues logging into this feature you may need to enable 3rd party cookies in your browser settings A17201 ECAD Model Type Image

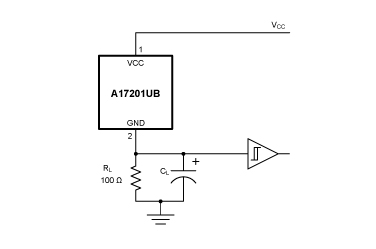

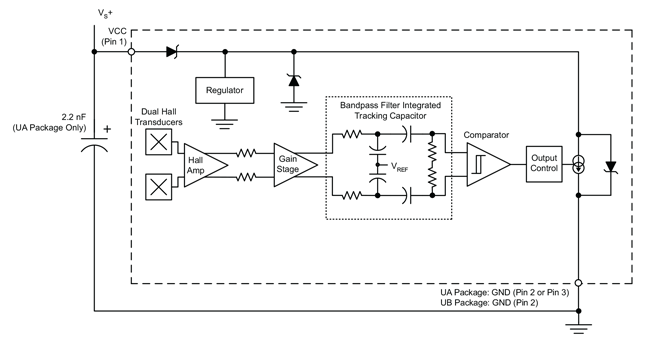

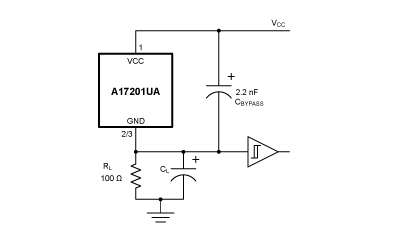

Top Features

Packaging

  • Integrated tracking capacitor
  • Integrated capacitor reduces requirements for external
  • EMI protection components (UB package)
  • Used for sensing motion of ring magnet or ferrous targets
  • Wide operating temperature range
  • Operation with magnetic input signal frequency from 8 Hz to 20 kHz
  • Large effective air gaps
  • 3.5 to 24.0 V supply operating range
  • Reverse battery protection
  • Resistant to mechanical and thermal stress

Part Number Specifications and Availability

Documentation and Resources

Documentation

Filter Document Type:
All Types
All Types Application Note
Documents Found: 32
Document Type Document Name
Application Note
Fundamental Properties of Speed Sensors
