APS12000 and APS12060: ASIL-A Vertical and Planar 3-Wire Hall-Effect Latches

Description

The APS12000 and APS12060 families of Hall-effect latches are flexible solutions with Vertical and Planar Hall sensing orientations.  Four different magnetic field sensitivities make for a versatile latch solution for automotive, industrial, and consumer motor applications. Compliant with ISO 26262, the APS12000/60 ICs are AEC-Q100 qualified for 24 V automotive applications.

These devices are available in active-high and active-low variants for ease of integration into electronic subsystems. These sensors are temperature-stable and suited for operation over extended junction temperature ranges up to 175°C, allowing for reliable operation in harsh environments.

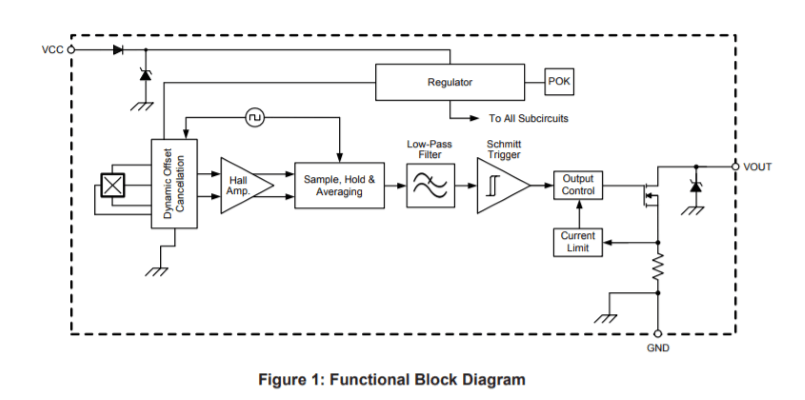

The APS12000 features a Hall-effect element that is sensitive to magnetic flux perpendicular to the face of the IC package.

The APS12060 features a vertical Hall-effect sensing element sensitive to magnetic flux parallel to the face of the IC package.

The APS12000 and APS12060 are available in a 3-pin SOT23W surface mount package and a 3-pin ultra-mini SIP through-hole mounting. Both packages are lead (Pb) free, with 100% matte-tin-plated leadframes.



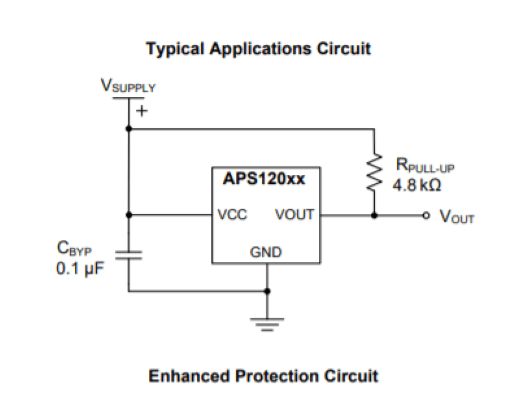

Top Features

  • ASIL-A rated (ISO-26262)
  • Horizontal or Perpendicular Sensing Planes
  • 175C Temperature Operation
  • Four different Sensitivity Levels
  • SIP and Surface Mount Options
  • Robust Design


Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant
Part Composition /
RoHS Data
Comments Samples Check Stock
APS12000LLHALT-0H 3-lead SOT -40°C to 150°C -- View Data Contact your
local sales rep
Check
Distributor Stock
APS12000LLHALX-0H 3-lead SOT -40°C to 150°C -- View Data Contact your
local sales rep
Check
Distributor Stock
APS12000LUAA-0H 3-lead SIP -40°C to 150°C -- View Data Contact your
local sales rep
Check
Distributor Stock
APS12060LLHALT-0H 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
APS12060LLHALT-0L 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
APS12060LLHALT-1L 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
APS12060LLHALX-0H 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
APS12060LLHALX-0L 3-lead SOT -40°C to 150°C -- View Data Contact your
local sales rep
Check
Distributor Stock
APS12060LLHALX-1L 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
APS12060LUAA-0H 3-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
APS12060LUAA-0L 3-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
APS12060LUAA-1L 3-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock

Allegro 的产品不允许在任何由于 Allegro 产品的合理故障造成人身伤害的装置或系统中使用,包括但不限于生命支持装置或系统。

UA-LH Package

Packaging

3-Pin SOT23W (suffix LH), 3-Pin SIP (suffix UA)
