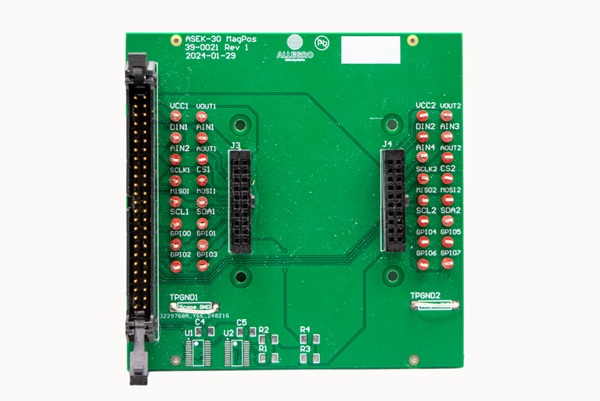

The ASEK-30-INT-MPS-001 is the interface board that routes the required signals from the ASEK-30 for easily accessible connections. The interface board is ideal for use with the optional socket board or with an application module that integrates the supported sensors.
The 2x25 (50)-pin header enables easy connection to the ASEK-30. Simply connect the primary header of the ASEK-30 with ASEK-30-INT-MPS-001 using the ribbon cable included with the ASEK-30. The connection to the IC is enabled through optional methods outlined below.
- Test points for connection to an external PCB or Module, oscilloscope, logic analyzer, or other connections.
- Headers to connect an optional device socket board.
This enables a variety of situations for the IC to be evaluated, including in-application or using the optional device board.
