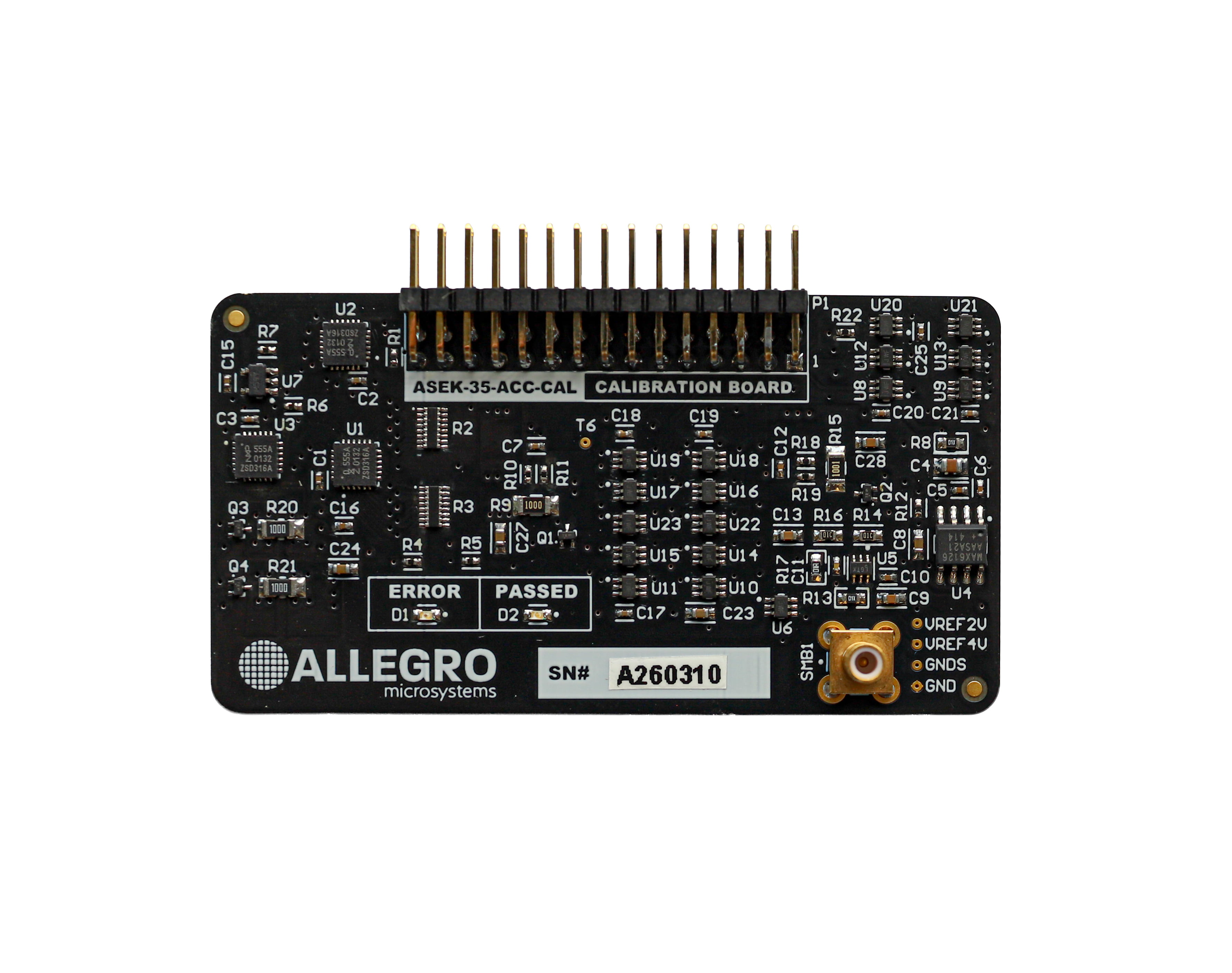

ASEK-35-ACC-CAL
The ASEK-35-ACC-CAL is an accessory board designed to support high-accuracy calibration of all ASEK-35 analog-to-digital converter (ADC) and digital-to-analog converter (DAC) channels. It is the recommended accessory for applications requiring enhanced measurement accuracy during the Two-Point Programming.
Product Details
Product Details
Top Features
Supported Devices
Content
This accessory board is designed for direct board-to-board connection to the ASEK-35 programmer through the 2×15-pin P1 header.
Ultra-High-Precision and Ultra-Low-Noise onboard voltage reference (MAX6126AASA21+) allows reliable long term stable calibration of the ASEK-35 programmer. Onboard EEPROM memory stores individually characterized values of the 2.048V and 4.096V references for even higher accuracy. No measurement instrument is needed during this calibration process.
The ASEK-35-ACC-CAL board also enables complete hardware self-test of the programmer’s internal functional blocks.
