Streamlining Automotive Power Design in Safety Critical Systems

Introduction:

Designing power systems for safety-critical automotive applications, such as electric power steering (EPS), braking, on board charger (OBC), transmission, and inverter, presents a formidable challenge for engineers. Modern vehicles are increasingly reliant on complex electronic systems that demand robust and reliable power management. These systems must operate flawlessly under harsh conditions, including extreme temperatures, vibration, and electromagnetic interference (EMI).

System designers are challenged with minimizing PCB space and component count, improving efficiency/thermal performance, differentiating the safety architecture, and reducing cost. The power management design must also remain compatible with the MCU of choice in addition to the various sensors and transceivers used in the application. While many MCU providers offer companion Power Management ICs, these solutions often ignore the critical challenges addressed above. The Allegro A8141x product family is comprised of fully integrated power management ICs (PMICs) meticulously designed to address these challenges, providing a comprehensive solution for safety-critical automotive systems developed to work with all the major automotive MCUs on the market.

How the A8141x Family Addresses Design Challenges:

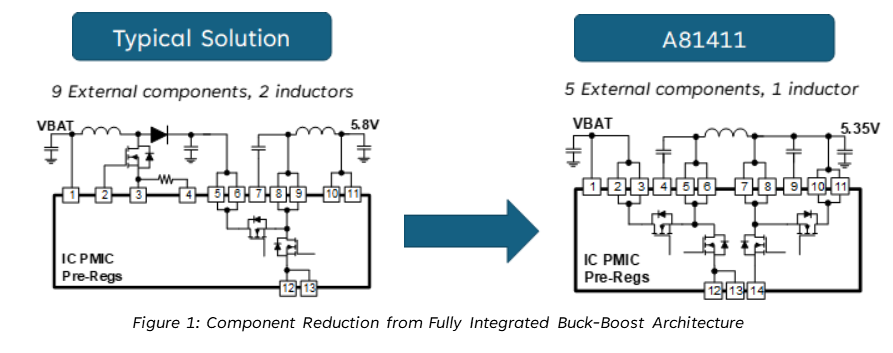

Reduced Component Count and PCB Space: The fully integrated, buck-boost architecture with a single-inductor eliminates the need for multiple external components, such as a second inductor, a diode, and a FET, that are typically required in conventional boost + buck solutions (Figure 1, showing A81411). This integration dramatically shrinks the overall component count by 5 parts while cutting layout space by 2/3.

Improved Efficiency and Thermal Performance: The buck-boost architecture delivers a marked improvement in efficiency, surpassing traditional boost + buck solutions by 5-15% across various operating conditions (Figure 2, showing the A81411). Additionally, the lowered pre-regulator output voltage, 5.35V vs 5.8V, reduces the amount of voltage dropped across the LDOs. This enhanced efficiency translates to significantly lower power dissipation, reducing heat generation and improving thermal performance. Consequently, the A8141x product family can operate reliably at higher ambient temperatures, essential for under-the-hood automotive environments.

Enhanced Safety and Reliability: The A8141x product family adheres to the rigorous ASIL-D safety standard, making it suitable for mission-critical automotive systems. It incorporates comprehensive safety and diagnostic features, such as fault detection and reporting. A crucial safety advantage of the A8141x is the higher absolute maximum voltage rating on its LDO input pins (40V vs 7V in typical solutions). This robust design protects the internal LDOs from damage in fault scenarios, such as a high-side FET short to battery voltage when in buck mode, ensuring system stability and preventing cascading failures (Figure 3, showing the A81411).

Cost Savings: The A8141x's integrated design and reduced component count contribute to substantial cost savings. The elimination of external components like inductors, diodes, and FETs reduces costs on average by $0.40-0.50 compared to typical solutions.

MCU Compatibility and Flexibility: The A8141x product family is compatible and validated with leading automotive microcontrollers (MCUs), including but not limited to: Aurix TC2x, TC3x, TC4x, C2000, TMS570, MPC5xx, S32k3xx, RH850.

Conclusion:

This article explores the challenges of designing power systems for safety-critical automotive applications. As vehicle systems become increasingly complex, the demand for robust, reliable, and efficient power management is paramount. The Allegro A8141x PMICs address these challenges head-on with its innovative integrated buck-boost architecture. This single-inductor design significantly reduces component count and PCB space, leading to more compact and cost-effective systems. Furthermore, the A8141x's enhanced efficiency and thermal performance ensure reliable operation even in demanding under-the-hood environments. Critically, for safety-critical systems, the A8141x product family is ASIL-D compliant and incorporates robust protection features, guaranteeing the highest levels of safety and stability. The A8141x line of PMICs is a game-changer for automotive power design, offering a streamlined, efficient, and highly reliable solution for the next generation of vehicles.

For more information, download the A81411 datasheet, request a sample, or contact our sales team click here or visit the product page.
