Brushless DC Drivers

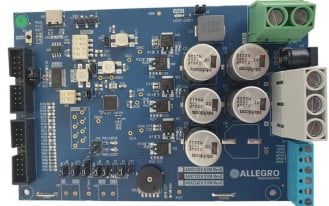

APEK89211 & APEK89212 Evaluation Board

The A89211 or A89212 (A89211/2) evaluation board is a high performance processor with integrated three-phase gate driver and precision current-sense capability. The evaluation board facilitates advanced control of three-phase brushless direct current (BLDC) and permanent-magnet synchronous-motor (PMSM) motors through graphical user interface (GUI).

Evaluation Board User Guide

Product Details

Top Features

  • Three phase BLDC motor connection
  • USB-C and FTDI chip for universal asynchronous receiver/transmitter (UART) communication with GUI for motor control
  • Potentiometer to test analog-to-digital converter (ADC)
  • General-purpose input/output (GPIO) connection socket

Supported Products:

Content

  • APEK89211 or APEK89212 evaluation board
  • Universal debugger daughterboard
