ASEK-37600-SUBKIT Evaluation Board

ACS37600 High-Precision, Programmable Linear Hall-Effect Sensor IC for Core-Based Current Sensing

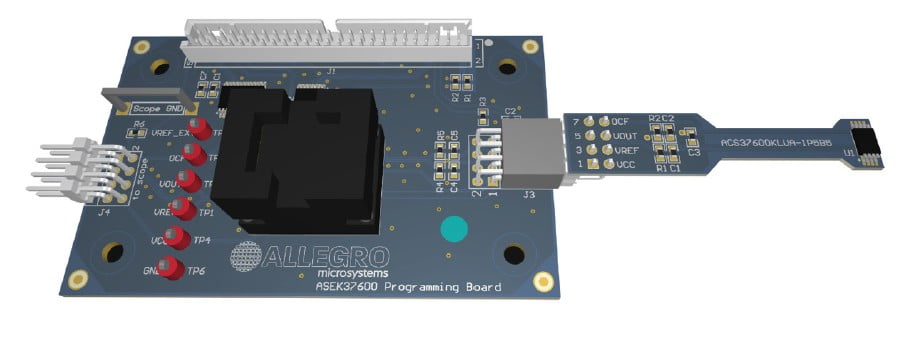

The ASEK37600 Evaluation Kit provides a simple way to program and evaluate the Allegro ACS37600 current sensor IC. This kit consists of two blocks: ASEK37600-Programming Board and ASEK37600-EVB..

Top Features

Contents

The evaluation kit is used to evaluate the functionality of the ACS37612, an economical and precise solution for AC and DC current sensing in busbar and high-current PCB (printed circuit board) applications. Applied current through a busbar or PCB generates a magnetic field that is sensed by the Hall IC.

Supported Products:

The kit supports and is assembled by default with these ACS37600 devices:

  • ACS37600KLUA-1P5B5-C
  • ACS37600KLUA-003B5-C
  • ACS37600KLUA-006B5-C
  • ACS37600KLUA-013B5-C
