ACS37800: Highly Isolated, Programmable AC and DC Power Monitoring IC

Description

The ACS37800 power monitoring IC greatly simplifies the addition of power monitoring to any AC and DC powered device. By making use of Allegro’s Hall-effect-based, galvanically isolated integrated current sensor technology, reinforced isolation can be achieved without extra board space. The sensor can also be powered from the same supply as the MCU, eliminating the need for multiple power supplies and digital isolation ICs. Furthermore, the isolated current measurement is done by detecting the magnetic field from the integrated conductor, eliminating the need for external sense resistors, current transformers, or Rogowski coils, resulting in a highly integrated power monitoring solution reducing PCB footprint.

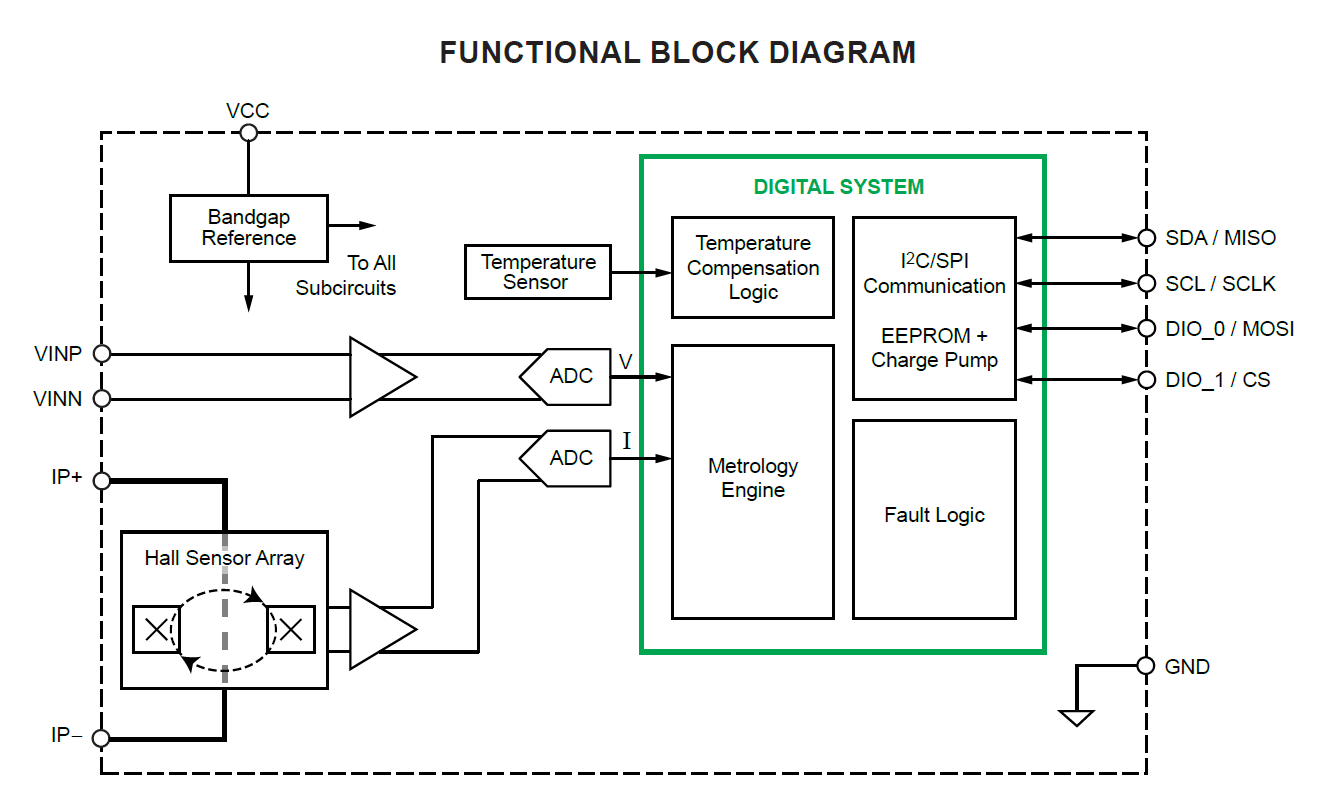

Two Hall plates are used for this measurement to deferentially sense the field, thus eliminating errors due to stray magnetic fields. Multiple parameters like averaging and zero crossing time or channels, and fault levels are user-programmable. The sensor features all key power measurements, which can be read out through I2C or SPI, as well as dedicated pins for voltage or current zero crossing (suitable for light-dimming applications) and fast overcurrent fault (for short-circuit detection). These two pins can also be configured to flag a VRMS under/overvoltage.

The ACS37800 is provided in a small, low-profile, surface-mount SOIC16 wide-body package. The ACS37800 is lead (Pb) free, and is fully calibrated prior to shipment from the factory. It can be configured easily thanks to a GUI software to be downloaded. Further customer calibration in application can improve accuracy.

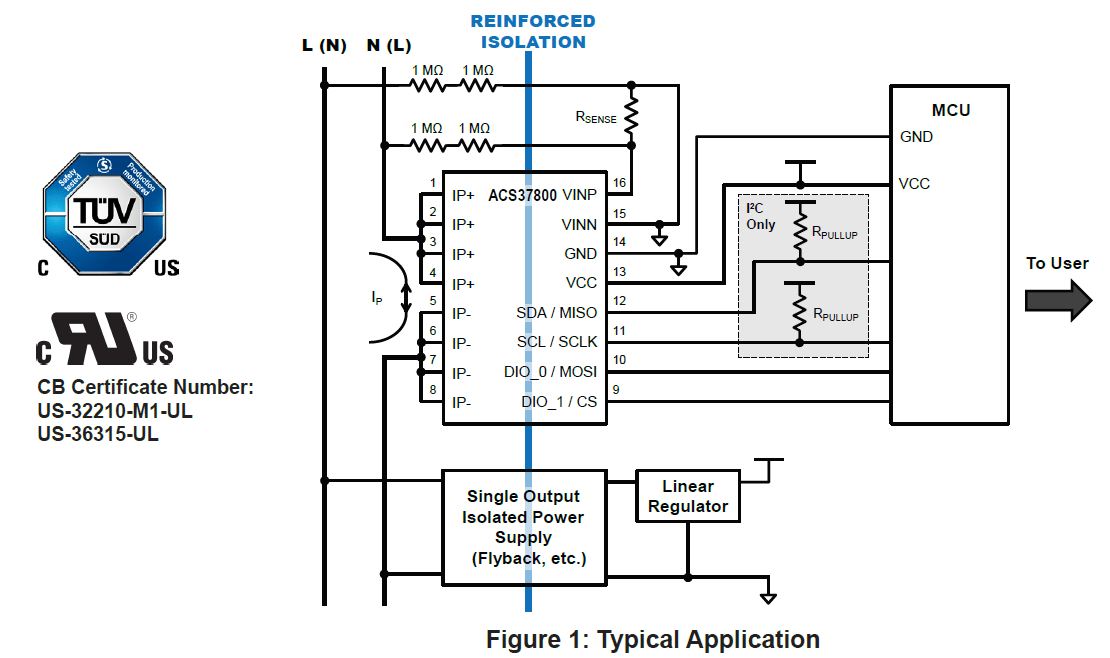

TYPICAL APPLICATIONS

  • IoT devices wanting to track power consumption (Smart Receptacle)
  • Smart Lighting
  • Server and Telecom power
  • Portable solar/energy systems used in disaster recovery
  • Asymmetric AC waveform applications

Top Features

  • User-programmable VRMS under/overvoltage pin
  • Dedicated voltage or current zero crossing pin
  • User-programmable overcurrent fault (OCF)
  • I2C or SPI communication
  • Programmable averaging on 2 out of the 3 outputs: Voltage, Current or Power

ACS37800 Power Monitoring IC

Learn more about how the ACS37800 power monitoring IC from Allegro simplifies the addition of power monitoring to any AC and DC powered device. Watch now.

ACS37800 Power Monitoring IC

Learn more about how the ACS37800 power monitoring IC from Allegro simplifies the addition of power monitoring to any AC and DC powered device. Watch now.

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant
Part Composition /
RoHS Data
Comments Samples Check Stock
ACS37800KMACTR-015B5-SPI 16-lead SOIC -40°C to 125°C Yes View Data New Contact your
local sales rep
Check
Distributor Stock
ACS37800KMACTR-030B3-I2C 16-lead SOIC -40°C to 125°C Yes View Data New Contact your
local sales rep
Check
Distributor Stock
ACS37800KMACTR-030B3-SPI 16-lead SOIC -40°C to 125°C Yes View Data New Contact your
local sales rep
Check
Distributor Stock
ACS37800KMACTR-090B3-I2C 16-lead SOIC -40°C to 125°C Yes View Data New Contact your
local sales rep
Check
Distributor Stock

Allegro 製品が生命維持装置やシステムの故障の原因となることが予期できる場合、または安全性や有効性に影響を及ぼすことが予想できる場合、そのような生命維持装置やシステムに Allegro 製品はご使用いただけません。

Packaging

16-pin SOICW (suffix MA) -

High isolation (4.8kVrms), high creepage/creepance wide body package that's RoHS compliant as it's lead (Pb) free.

Allegro-16-Pin-SOICW-MA-Package

 MA Package .stp Model

Design Support Tools

ACS37800 Software Portal

ACS37800 Evaluation Tools

ACS37800 Programming Guide (PDF)

CB Certificates

Certificate-CB-US-32210-M3-UL-60950-1 [MA] (PDF)

Certificate-CB-US-36315-UL-62368-1 [MA] (PDF)

Certificate of Compliance

 20190906-E316429 Certificate of Compliance (PDF)

Gerber Files

ASEK37800 Gerber Files (ZIP)

 Application Notes

ACS37800 Power Monitoring IC (PDF)

I2C Addressing Using ACS37800 (PDF)

Frequently Asked Questions

Current Sensor FAQ »
