Automated Doors and Conveyers
APS12625 / APS12626 – True 2D latch (XY, YZ, or XZ) provides speed & direction or AB encoding signals from a single IC enabling flexible system integration and more compact solution over traditional two latch designs.
APS13290 / APS13291 – Hall-effect latch with highest ESD robustness and precision switch points specified over full 3~24V supply voltage and temperature range.
APS13295 – Hall-effect switch with highest ESD robustness and precision switch points specified over full 3~24V supply voltage and temperature range.
ACS71240 – Shunt alternative. Cost Effective. Compact Hall-based current sensor.
ACS720 – 0.6% differential hall sensor with dual overcurrent detection in space efficient 800V+ SOIC16 package.
ACS732/3 – 1 MHz, 2.5% Differential Hall Sensor with < 1 µs Overcurrent detection in space efficient 1500V+ SOIC16 package.
A3916 – Low voltage DC or Stepper Driver for battery powered equipment.
A5977 – High current microstepping motor drive provides low vibration and torque ripple.
A4950 – High Current DC motor driver in small package with few external components.
ATS668LSM – Voltage interface, fully integrated solution includes magnet, IC, and EMC protection for ferrous target speed measurement.
A19530LUC – Single IC offers Speed and/or direction detection in a miniature EMC protected package for ferrous target or magnetic encoder sensing.
ATS19520LSN – Current interface, fully integrated solution includes magnet, IC, and EMC protection for ferrous target speed and direction detection.

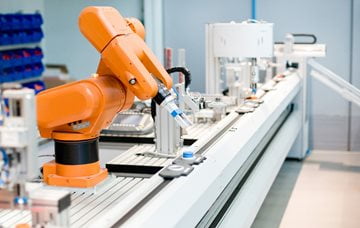

Robots/Cobots
ALS31300 – Highly configurable 3D Hall-effect linear sensor with I2C interface and advanced power management features.
ALS31313 – Highly configurable 3D Hall-effect linear sensor with I2C interface and advanced power management features.
A1330 – Configurable analog/PWM on-axis angle sensor with short stroke capability enabling full scale output with <360° rotation.
A1308 / A1309 / A1315 – Robust, high accuracy 1D linear hall-effect sensor with analog output.
ACS71240 – Shunt alternative. Cost Effective. Compact Hall-based current sensor.
ACS72981 – 100A+, 250 kHz, 500Vdc working voltage in compact surface mount package.
ACS730 – 1 MHz, Differential Output, 1.2 mΩ primary path.
A4955 – H-Bridge gate driver can drive loads up to 400 W.
A4919 – Integrated LDO for sensors or microprocessor.
A19250LUB – Accurate edge detection for reliable speed measurement over large air gaps.
A19350LUB – Accurate edge detection for reliable speed and direction measurement over large air gaps.
A19530LUC – Single IC offers Speed and/or direction detection in a miniature EMC protected package for ferrous target or magnetic encoder sensing.
Factory Transportation
AAS33001 – Motor position angle sensor with on-chip linearization provides high accuracy absolute position and ABI/UVW signals from a single chip solution.
APS13290 / APS13291 – Hall-effect latch with highest ESD robustness and precision switch points specified over full 3~24V supply voltage and temperature range.
APS13295 – Hall-effect switch with highest ESD robustness and precision switch points specified over full 3~24V supply voltage and temperature range.
A1308 / A1309 / A1315 – Robust, high accuracy 1D linear hall-effect sensor with analog output.
ACS772/3 CB – Module-alternative current sensor with up to 400A range and 1300+ working voltage.
ACS72981 – 100A+, 250 kHz, 500Vdc working voltage in compact surface mount package.
A4910 – 3 independant current sense amplifiers for simple FOC control.
A4916 – Can be paired with in-phase current sensors for high current systems.
A19520LUB – Current interface, integrated solution includes IC and EMC protection for ferrous target or magnetic encoder speed and direction detection.
ATS19520LSN – Current interface, fully integrated solution includes magnet, IC, and EMC protection for ferrous target speed and direction detection.
ATS668LSM – Voltage interface, fully integrated solution includes magnet, IC, and EMC protection for ferrous target speed measurement.
