The ASEK-20 and ASEK-21 programmers are designed to simplify the entire sensor evaluation process by providing a seamless interface between a PC and an Allegro sensor. User-friendliness is a key benefit, as the included GUI and DLL software packages facilitate effortless communication, allowing for easy reading, writing, and in-application calibration of the sensor. The kits further streamline development with practical, ready-to-use hardware, including standard USB connections and prototyping boards with convenient test points for quick and simple signal measurement.
Product Details
Product Details
Top Features

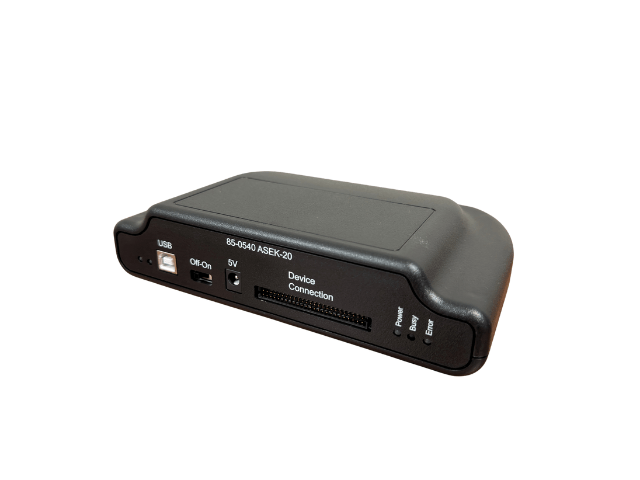

ASEK-20 Programmer
- Function: Enables communication between a PC and a sensor IC for evaluation and programming.
- Hardware Connections:
- 50-pin header
- Included prototyping board with hardware test points for measuring analog and digital signals.
- Compatible with device-specific daughterboards that contain device sockets.
- PC Connection: Connects via USB with the included USB-A to USB-B cable.
- Power: Powered by the included 5V universal AC/DC power supply.

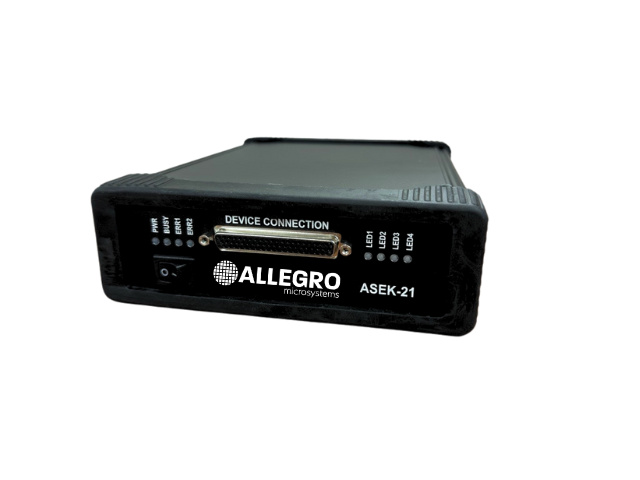

ASEK-21 Programmer
- Function: Provides the same core capabilities as the ASEK-20
- Key Enhancements from ASEK-20:
- Additional I/O enables the connection of up to four Allegro sensor ICs simultaneously.
- More robust power supply.
- Enhanced ESD (Electrostatic Discharge) protection.
- Hardware Connections:
- Directly through the 62-pin DSUB connector.
- Via the included prototyping daughterboard, which provides hardware test points.
