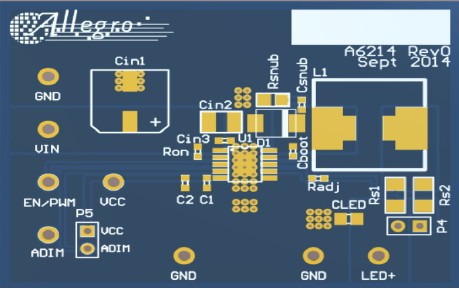

APEK6214KLK-01-MH Evaluation Board

A6214 Automotive 2A Constant-Current Buck LED Drivers with PWM and Analog Dimming

The A6214 is a single-IC switching regulator that provides constant-current output to drive high-power LEDs. It integrates a high-side N-channel DMOS switch for DC-to-DC step-down (buck) conversion. It can accept input voltage from 4.5 V to 55 V, to drive a single LED string up to 2 Amps. This evaluation board and its user guide provide an easy way to demonstrate the operations of A6214.

Contents

  • A6214 Evaluation Board
