This user guide documents the features, operation, and use of the ACS37630 current sensor with the ASEK37630 evaluation board.
Product Details
Product Details
Top Features

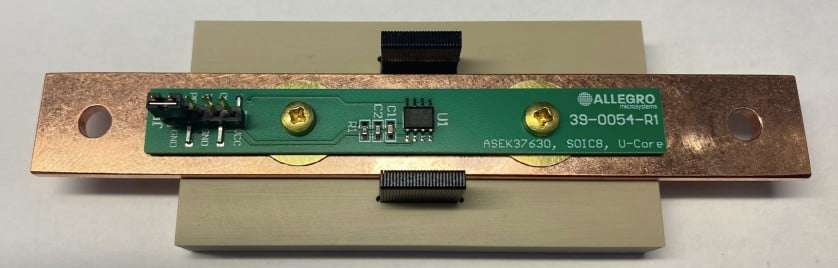

This evaluation board is designed for the 4 mV/G variant of the ACS37630 (sensor part number ACS37630LOLLU-004B5) with a full-scale output range of approximately ±860 A, or the 2.5 m V/G variant of the ACS37630 (sensor part number ACS37630LOLLU-2P5B5) with a full-scale output range of approximately ±1380 A. VCC, GND, and VOUT test points are available as header pins for ease of connection to lab equipment. Holes at either end of the busbar allow for M5 bolt connections to lugs and high-current cables.
Supported Products:
Content
This user guide documents the features, operation, and use of the ACS37630 current sensor with the ASEK37630 evaluation board. Allegro MicroSystems offers evaluation board units that provide a method for quick evaluation of the Allegro current sensor in a lab environment, without the requirement for a custom circuit board.
