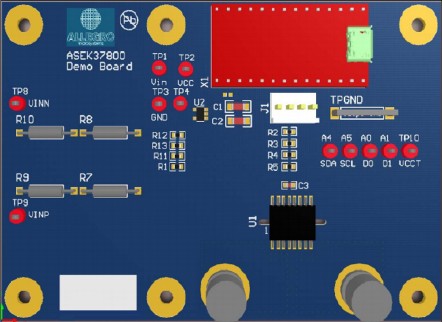

ASEK37800KMAC-090B3-I2C Evaluation Board

ACS37800 Isolated, Programmable AC and DC Power Monitoring IC

This quick guide documents the use of the ASEK37800 evaluation boards with the Allegro ACS37800 samples programmer.

Top Features

  • Preset magnetic field range: ±6 mT
  • Low-noise performance
  • Optimized for high dV/dt applications
  • Linear analog output voltage
  • Response time: <300 ns
  • Supply voltage: 5 V
  • Operating temperature: –40°C to 125°C
