High Speed Inductive Position Sensor IC with Digital Outputs

A17803

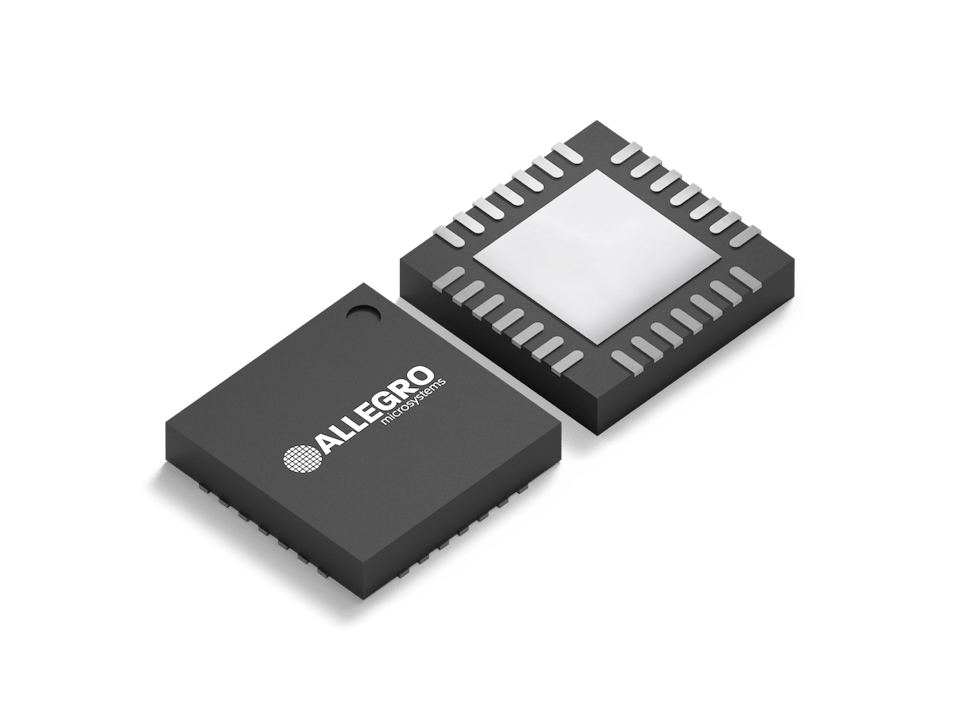

High Speed Inductive Position Sensor IC with Analog and Digital Outputs - A17802/3 Product Image

The A17803 IC is an inductive position sensor designed to measure the rotational angle of a metallic target and deliver the information over a digital output or a differential sine and cosine analog interface.

* Note: If you have issues logging into this feature you may need to enable 3rd party cookies in your browser settings A17803 ECAD Model Type Image
View Datasheet
Request Full Datasheet
Navigate

Description

Top Features

Typical Applications

Packaging

The A17803 IC is an advanced inductive position sensor designed to measure the rotational angle of a metallic target and output the information over a high speed digital interface with a large output interface selection: SPI, SENT, motorSENT, PWM, and ABI.  The IC features digital processing that optimizes the inductive front-end and applies compensations that maximize system-level angle accuracy.

The A17803 provides a high-speed absolute-angle sensor that is suitable for advanced synchronous motor control, including automotive electric motor systems.

The A17803 was developed in accordance with ISO 26262 as a hardware safety element out of context. with ASIL C capability for use in automotive safety-related systems.

  • Highly integrated inductive position sensor interface IC optimized for use in e-Motor applications.
  • State of the Art signal conditioning algorithms ensure high accuracy over a wide range of system configurations.
  • Up to 16 bit resolution at up to 250,000 rpm for today’s traction motor and motor position sensing applications.
  • Large output interface selection: SPI, SENT, motorSENT, PWM, and ABI.
  • Developed in accordance with ISO 26262:2018 ASIL C(D) (pending assessment)

14-PIN TSSOP (Suffix LE)

LE Package Documentation
