A33230: 3D Hall-Effect Sensor with Sine/Cosine Outputs

SOT23W LH Package

Description

Top Features

The A33230 is the world's smallest 3D sine/cosine sensor currently available in the market. It contains two discrete analog signal paths for superior high-speed performance, and the tiny SOT23-W package size makes it ideal for situations where PCB space is at a premium. The IC can also be used as an angle sensor, provided the system includes an electronic control unit (ECU) capable of performing CORDIC calculations on the two outputs. The A33230 is ideally suited for high-speed, low-latency motor position applications including brushless DC motors, and is an excellent choice for both AC synchronous permanent magnet and asynchronous inductive motors. It will easily "drop-in" to systems that are already set-up to receive sine/cosine sensor outputs.

The A33230 incorporates vertical and planar Hall-effect elements with sensing axes that are orthogonal to one another, providing 90° of phase separation, which is inherently independent of magnet pole spacing and air gap. It comes pre-programmed to measure angles in any plane (XY, XZ, or YZ), while providing independent sine and cosine outputs. It’s a cost-effective solution with a small footprint that makes it ideal for legacy applications where a designer needs to minimize PCB size, or is looking for an opportunity to reduce BOM cost in automotive and industrial applications such as factory robotics, windshield wipers, in-cabin motors and more.

  • Smallest package available (SOT23-W)
  • 3D sensing capable
  • Fast response/low latency
  • Sine/cosine outputs
  • Simple and flexible
  • Two sensitivity options
  • AEC-Q100 grade 0 automotive qualified

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant
Part Composition /
RoHS Data
Comments Samples Check Stock
A33230LLHALT-XY-S-AR-03 5-lead SOT -40°C to 150°C -- View Data Contact your
local sales rep
Check
Distributor Stock
A33230LLHALT-XY-S-AR-10 5-lead SOT -40°C to 150°C -- View Data Contact your
local sales rep
Check
Distributor Stock
A33230LLHALT-XZ-S-AR-03 5-lead SOT -40°C to 150°C -- View Data Contact your
local sales rep
Check
Distributor Stock
A33230LLHALT-XZ-S-AR-10 5-lead SOT -40°C to 150°C -- View Data Contact your
local sales rep
Check
Distributor Stock
A33230LLHALT-YZ-S-AR-03 5-lead SOT -40°C to 150°C -- View Data Contact your
local sales rep
Check
Distributor Stock
A33230LLHALT-YZ-S-AR-10 5-lead SOT -40°C to 150°C -- View Data Contact your
local sales rep
Check
Distributor Stock

Allegro 的产品不允许在任何由于 Allegro 产品的合理故障造成人身伤害的装置或系统中使用,包括但不限于生命支持装置或系统。

SOT23W LH Package

Packaging

5-Pin SOT23-W (suffix LH)

LH Packaging Documentation

Application Notes

Whitepapers and Brochures

Motor Position and Angle Sensing

Schematics

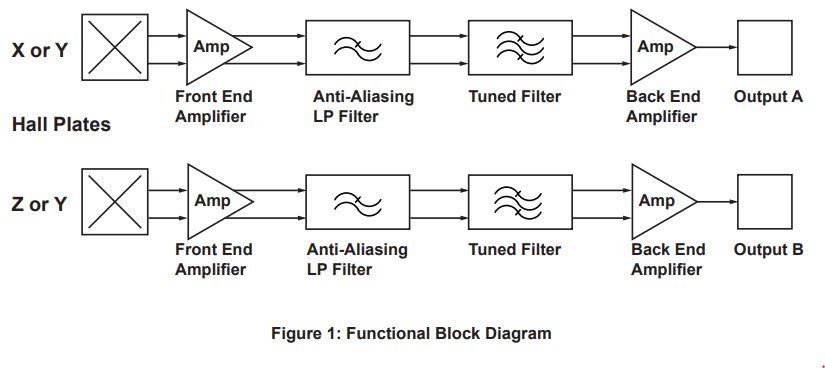

Functional Block Diagram

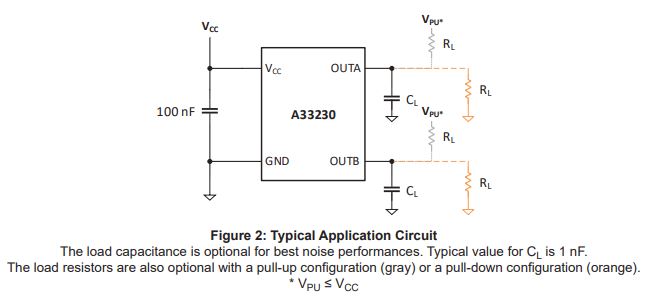

Typical Application Diagram
