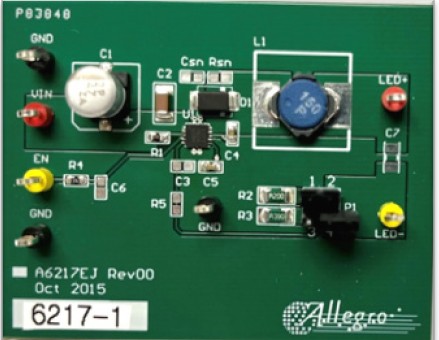

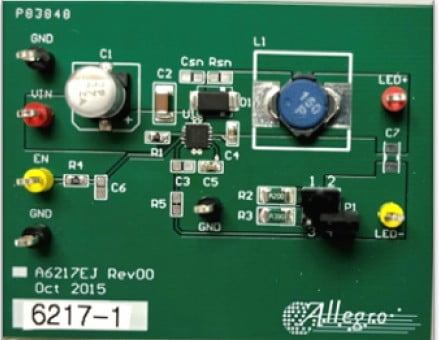

APEK6217KEJ-01-MH-0 Evaluation Board

A6217 Automotive Constant-Current Buck LED Drivers with PWM Dimming

This evaluation board is used to demonstrate the operation and performance of the Allegro A6217 constant-current buck regulator LED driver.

Features

Contents

  • A6217 constant-current buck LED driverm
  • User-selectable LED output current up to 1.5 A
  • LED dimming control enabled via an external PWM signal
  • Test point for connection of external logic sources for enable/disable signal or PWM dimming signal
  • Test points for connection of an external LED string

  • APEK6217 Evaluation Board
