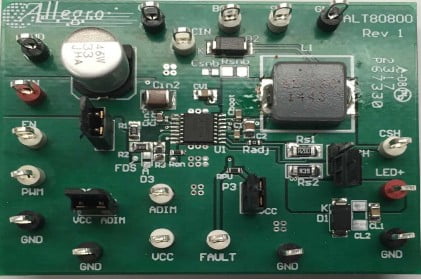

APEK80800KLP-01-T Evaluation Board

ALT80800 Automotive-Grade, Constant-Current 2.0 A PWM Dimmable Synchronous Buck LED Driver

The ALT80800 Evaluation Board is designed to help system designers evaluate the operation and performance of the ALT80800 2.0 A synchronous buck LED driver. The regulated output current is easily configurable to 1 A or 1.5 A, with additional control by applying external analog dimming (ADIM) and/or PWM signals. The maximum forward voltage drop of the driven LED string is limited by VIN.

Features

Contents

  • ALT80800 2.0 A Synchronous Buck LED Driver
  • User-selectable Enable, LED current, Fault pull-up to VCC and ADIM pull-up to VCC
  • Optional ADIM and PWM inputs for additional LED current level control

  • APEK80800KLP-01-T Evaluation Board
