450kHz High-Accuracy Current Sensor with Integrated Fault Detection in SOIC-6 Package
ACS37010-2
The ACS37010/12 current sensors provide accurate and reliable current measurements with a fast 1.3µs response time. The ACS37010 offers a voltage reference output, while the ACS37012 includes a fault output for overcurrent/short circuit detection.
Product Details
Product Details
Top Features
- ±1.5% sensitivity error across temperature
- Fused-lead SOIC-6 package supports 840 VRMS basic isolation and 420 VRMS reinforced isolation

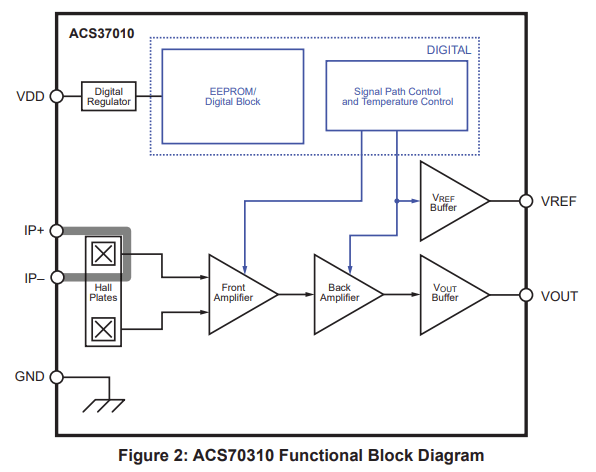

- Non-ratiometric operation with VREF output for enhanced accuracy in noisy environments (ACS37010)

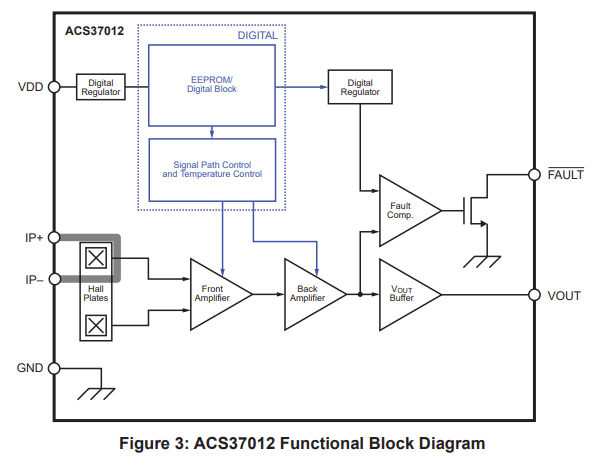

- Fast logic alert fault output pin with factory pre-programmed trip point provides overcurrent or short-circuit detection and enhanced system protection (ACS37012)
- 0.68 mΩ internal primary conductor resistance for better power efficiency
