ACS37010/12 电流传感器具有 1.3µs 的快速响应能力，可实现准确可靠的电流感测。ACS37010 提供电压基准输出，而 ACS37012 则包含用于过流/短路检测的故障输出。
Product Details
Product Details
Top Features
- ±1.5% sensitivity error across temperature

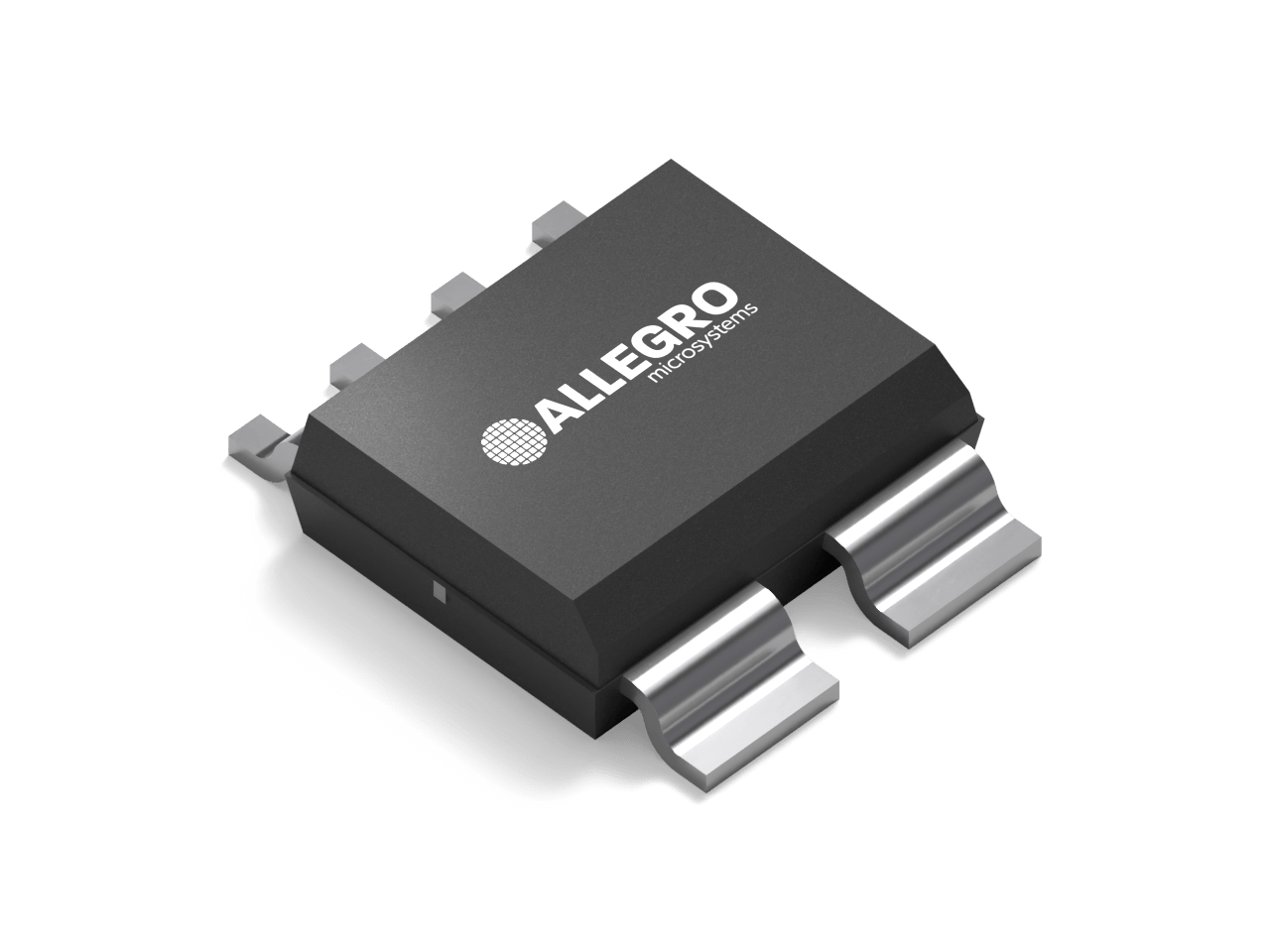

- Fused-lead SOIC-6 package supports 840 VRMS basic isolation and 420 VRMS reinforced isolation and SOIC-8 package supports 297 VRMS basic isolation
- Non-ratiometric operation with VREF output for enhanced accuracy in noisy environments (ACS37010)
- Fast logic alert fault output pin with factory pre-programmed trip point provides overcurrent or short-circuit detection and enhanced system protection (ACS37012)
- Fused-lead SOIC-6 package offers 0.68 mΩ internal primary conductor resistance for better power efficiency
