The A31015 is a ratiometric linear Hall-effect sensor engineered to extend battery life in space-constrained portable applications through industry-leading power management. By utilizing a dedicated active-high enable (EN) pin, engineers can duty-cycle the device to achieve an average power consumption of less than 1 µW (at 10 Hz), while an ultra-low leakage sleep mode (< 1 nA) ensures minimal drain during inactivity. With a fast 13 µs wake-up time and high-impedance output in sleep mode, the A31015 allows for seamless integration into multiplexed sensor arrays or shared ADC lines without compromising system precision or thermal budgets.
Product Details
Product Details
Top Features
- Nanopower Duty Cycling: Active-low EN pin reduces average power to <1 µW at 10 Hz for maximum battery life.
- Ultra-Low Sleep Mode: Consumes <1 nA in sleep mode with high-impedance output, preventing idle battery drain.
- Rapid Wake-Up: Fast <13 µs power-on ensures instant measurement readiness for high system responsiveness.

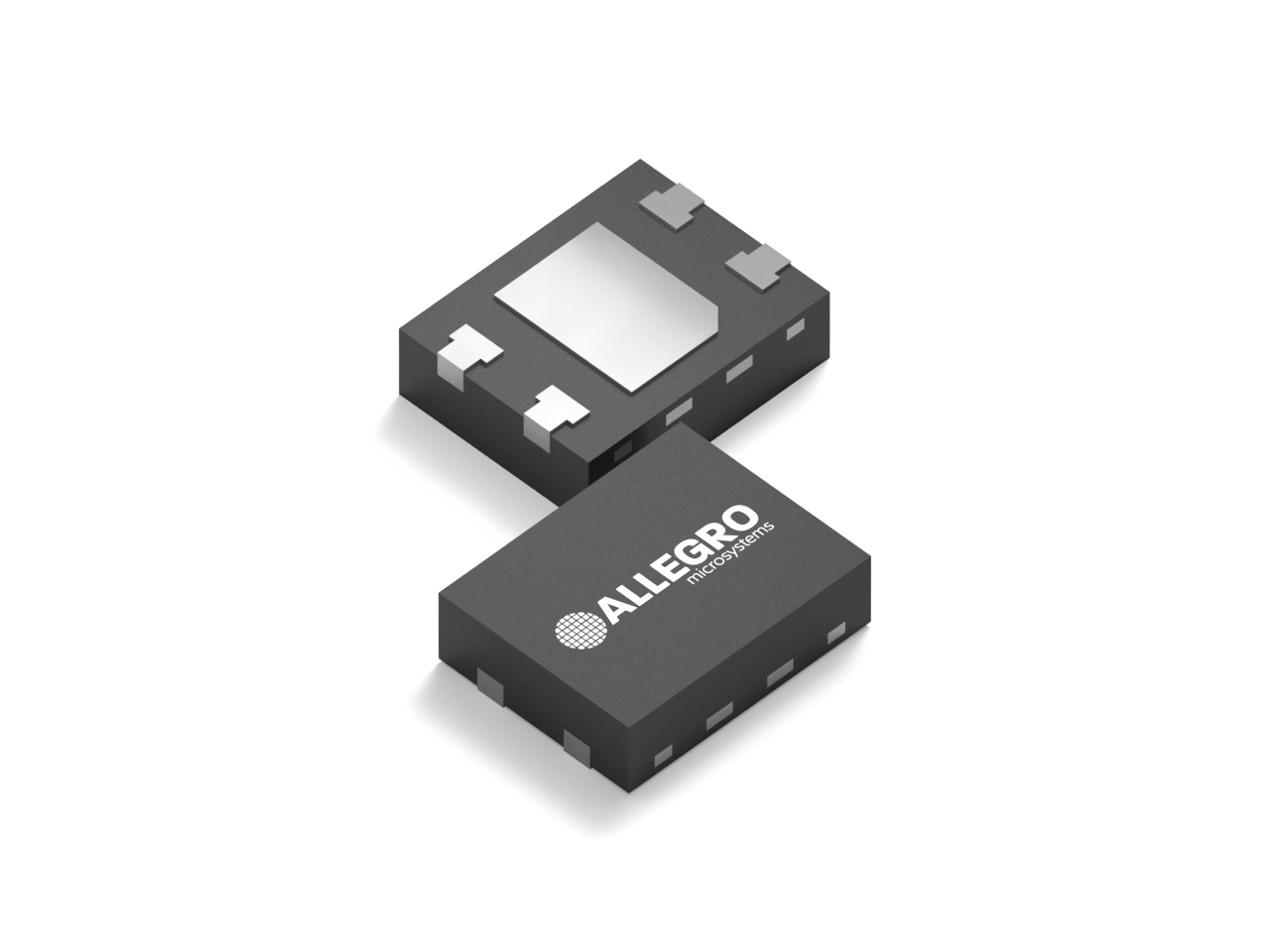

- Space-Saving DFN-4: Tiny 1.54 mm² footprint (<0.5 mm height) is ideal for earbuds and game controller handles.
- Flexible Sensitivity: Factory-programmed Bipolar/Unipolar options match diverse magnet and mechanical designs.
Target Application
