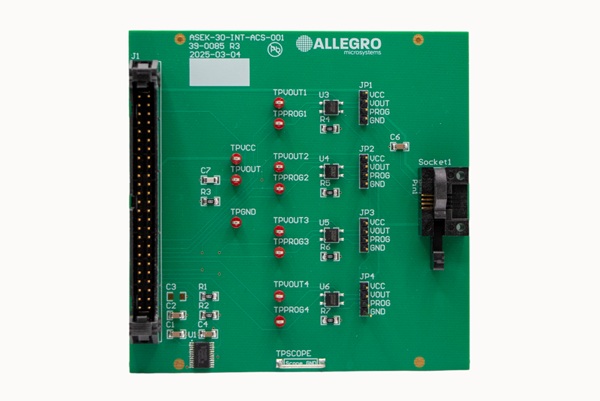

The ASEK-30-INT-ACS-001 is an interface board that routes the required signals from the ASEK-30 to accessible test points, simplifying connectivity for development and evaluation and allowing easily accessible connections.
The 2x25 (50)-pin header enables easy connection to the ASEK-30 via a ribbon cable. Simply connect the primary header of the ASEK-30 with the corresponding header on the ASEK-30-INT-ACS-001 using the ribbon cable included with the ASEK-30.
The board provides convenient access to IC signals through labeled test points, allowing connection to external PCBs or modules, oscilloscopes, logic analyzers, and other test equipment.
The ASEK-30-INT-ASC-001 is a production ready programming tool enabling connection for up to four devices simultaneously.
