ASEK-30 Programmer

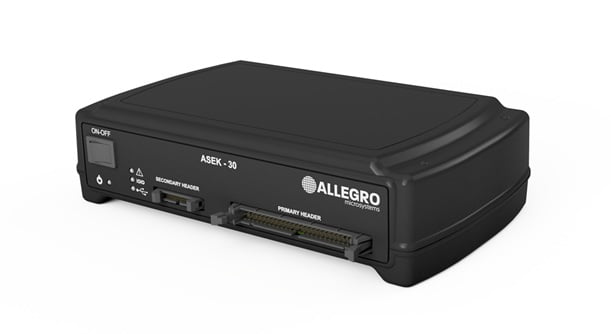

ASEK 30 Programmer Kit Image

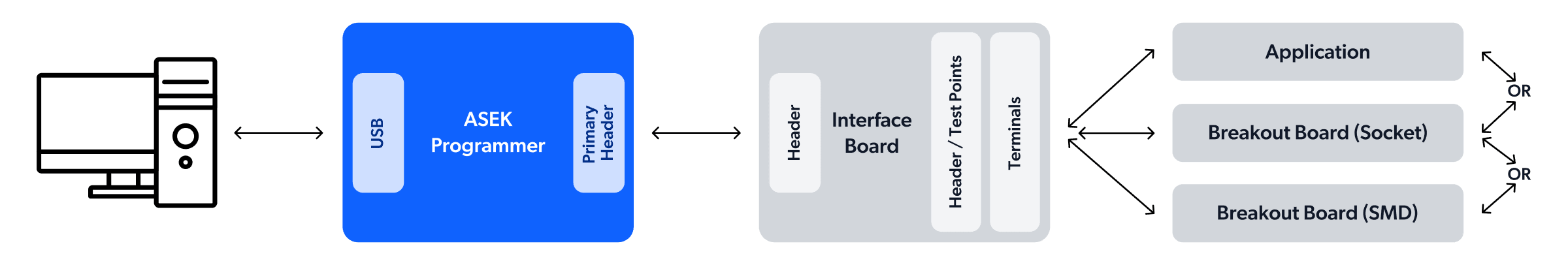

The ASEK-30 programmer is an interface between a PC and an Allegro sensor IC. Allegro provided GUI’s and DLL’s facilitate easy access to the sensor enabling reading from, writing to, and measuring the sensor for calibration in the application.

Description

Top Features

ASEK-30 is the programmer that provides the interface between the sensor and software for essential communication and evaluation.  Utilizing the ASEK-30 along with the Allegro-provided graphical user interface (GUI) the user can quickly start to evaluate and program the sensor.  Also, the Allegro software library files, DLLs, allow integration of the ASEK-30 into custom automation setups.

Hardware connections are performed using optional boards that route the necessary ASEK-30 signals to available headers for connection to a custom module, or to specified Allegro device boards.  The device boards have soldered devices or sockets for rapid evaluation.

Connection between the PC and ASEK-30 is performed via USB, a USB-A to USB-C cable is provided.  Power to the ASEK-30 is provided by an included 12V, 60W, AC/DC universal power supply.

Supports a wide range Allegro products

  • On-board protocol support and measurement eliminates need for other tools or external controller
  • Analog, PWM, SENT, SPI, I2C, Manchester

Easy Integration

  • The standard 2x25 (50)-pin port provides necessary IO to interface to the sensor

Reduced Costs and Time to Market

  • Allegro provided GUI and DLL’s minimize software development efforts
  • Available device boards allow interfacing with the IC without the need for a user supplied PCB.
  • Available interface boards provide easy to access connection points for use with an external module or PCB.

Faster Cycle Time

  • Capable of programming multiple ICs

ASEK-30 Unboxing

This unboxing video for the ASEK-30 programmer shows the ease of use of using the programmer and connecting applicable interface and device break out boards.



Sensor

Buy Now

SensorASEK-30 Programmer

Buy Now

Buy Now

ASEK Programmer

Position Sensors

Sensor

Package

Interface Board Required

Buy Now

Device Breakout Board

Buy Now

SensorA33020

PackageLE (TSSOP14)

Interface BoardASEK-30-INT-MPS-001

Buy Now

Buy Now

Device Breakout BoardASEK-30-SOC-MPS01SD

Buy Now

Buy Now

SensorA33020

PackageLE (TSSOP24)

Interface BoardASEK-30-INT-MPS-001

Buy Now

Buy Now

Device Breakout BoardASEK-30-SOC-MPS01DD

Buy Now

Buy Now

SensorA33022

PackageLE (TSSOP14)

Interface BoardASEK-30-INT-MPS-001

Buy Now

Buy Now

Device Breakout BoardASEK-30-SOC-MPS01SD

Buy Now

Buy Now

SensorA33022

PackageLE (TSSOP24)

Interface BoardASEK-30-INT-MPS-001

Buy Now

Buy Now

Device Breakout BoardASEK-30-SOC-MPS01DD

Buy Now

Buy Now

SensorA33023

PackageLE (TSSOP14)

Interface BoardASEK-30-INT-MPS-001

Buy Now

Buy Now

Device Breakout BoardASEK-30-SOC-MPS01SD

Buy Now

Buy Now

SensorA33023

PackageLE (TSSOP24)

Interface BoardASEK-30-INT-MPS-001

Buy Now

Buy Now

Device Breakout BoardASEK-30-SOC-MPS01DD

Buy Now

Buy Now

Current Sensors

Sensor

Package

Interface Board Required

Buy Now

Device Breakout Board

SensorACS70310

PackageKT (SIP4)

Interface Board RequiredASEK-30-INT-ACS-001

Buy Now

Buy Now

Device Breakout BoardNot Required

SensorACS70311

PackageKT/OK (SIP4)

Interface Board RequiredASEK-30-INT-ACS-001

Buy Now

Buy Now

Device Breakout BoardNot Required

SensorACS70312

PackageKT (SIP4)

Interface Board RequiredASEK-30-INT-ACS-001

Buy Now

Buy Now

Device Breakout BoardNot Required

SensorACS37610

PackageLU (TSSOP8)

Interface Board RequiredASEK-30-INT-ACS-002

Buy Now

Buy Now

Device Breakout BoardNot Required

SensorACS37611

PackageLU (TSSOP8)

Interface Board RequiredASEK-30-INT-ACS-002

Buy Now

Buy Now

Device Breakout BoardNot Required
