ASEK-35-SOC-KT01

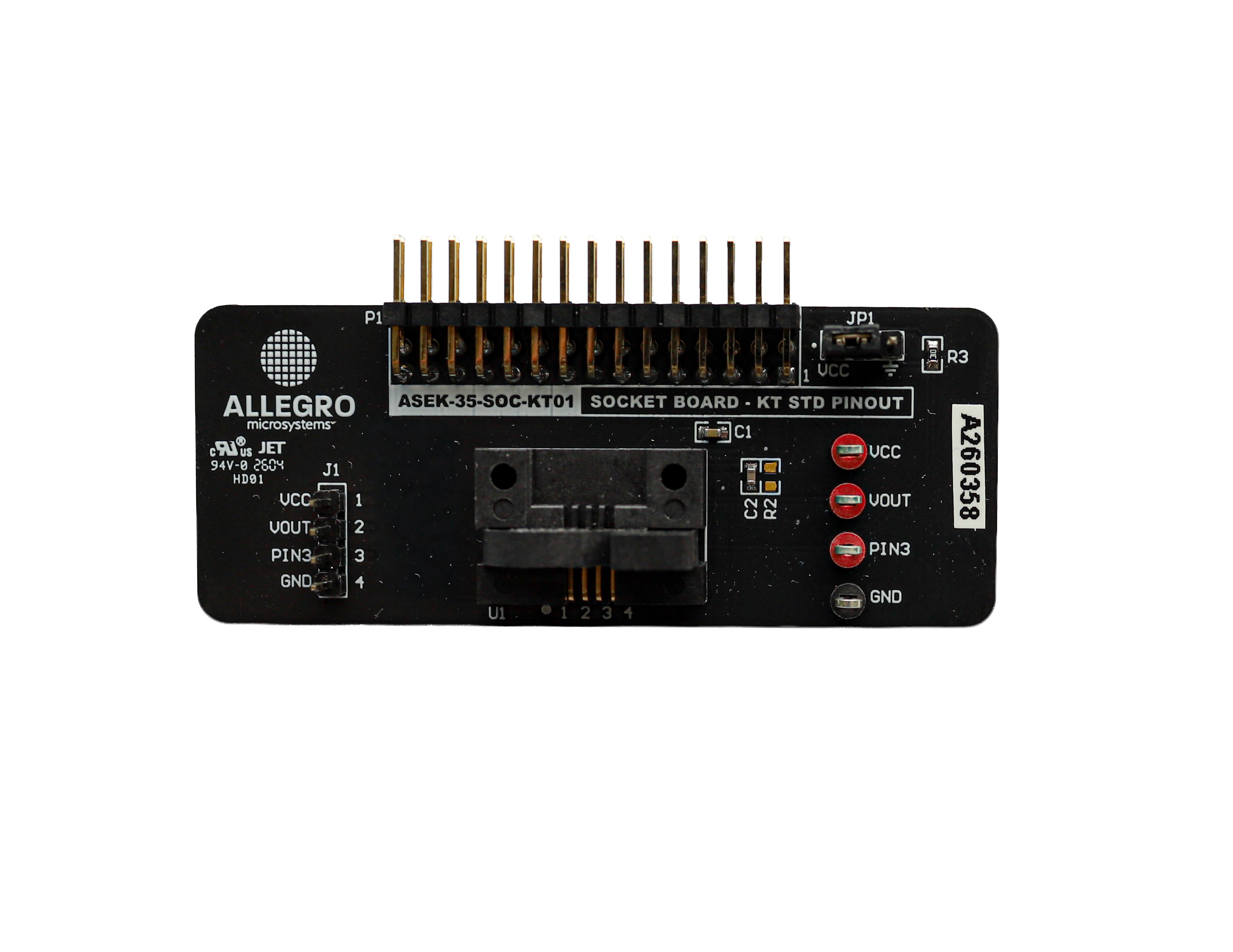

ASEK-35-SOC-KT01 is a socket board specific to KT package (four-lead, single in-line package; SIP-4). The board routes all required sensor signals from the ASEK-35 programmer to a burn-in test socket and clearly labeled test points simplifying connectivity for development and evaluation.
Product Details
Product Details
Top Features
Supported Sensors
A1367 - KT (SIP4)ACS37503 - KT (SIP4)
ACS37601 - KT (SIP4)
ACS70310-11 - KT/OK (SIP4)
ACS70312 - KT (SIP4)
Documentation
ASEK-35 Hardware Selection Guide
ASEK-35 Software User Guide
ASEK-35 Programmer User Guide
Content
This socket board is designed for direct board-to-board connection to the ASEK-35 programmer through the 2×15-pin P1 header.
The ASEK-35-SOC-KT01 socket board supports programming of field-current sensors having the standard KT pinout: PIN1 = VCC, PIN2 = VOUT, PIN3 = (configurable/IC-specific), PIN4 = GND.
It includes a burn-in test socket (Azimuth 63181T KE-KT), application-level components such as the VCC bypass capacitor or VOUT loads, test points, and connectors for convenient access to sensor signals. Jumper JP1 provides flexible configuration of the device PIN3 pin with either a pull-up or pull-down resistor. Alternatively, the J1 header can be used to interface with sensors mounted on an external demo board or within a customer application through a wire harness.
Note: The socket board is supplied without the sensor installed.
