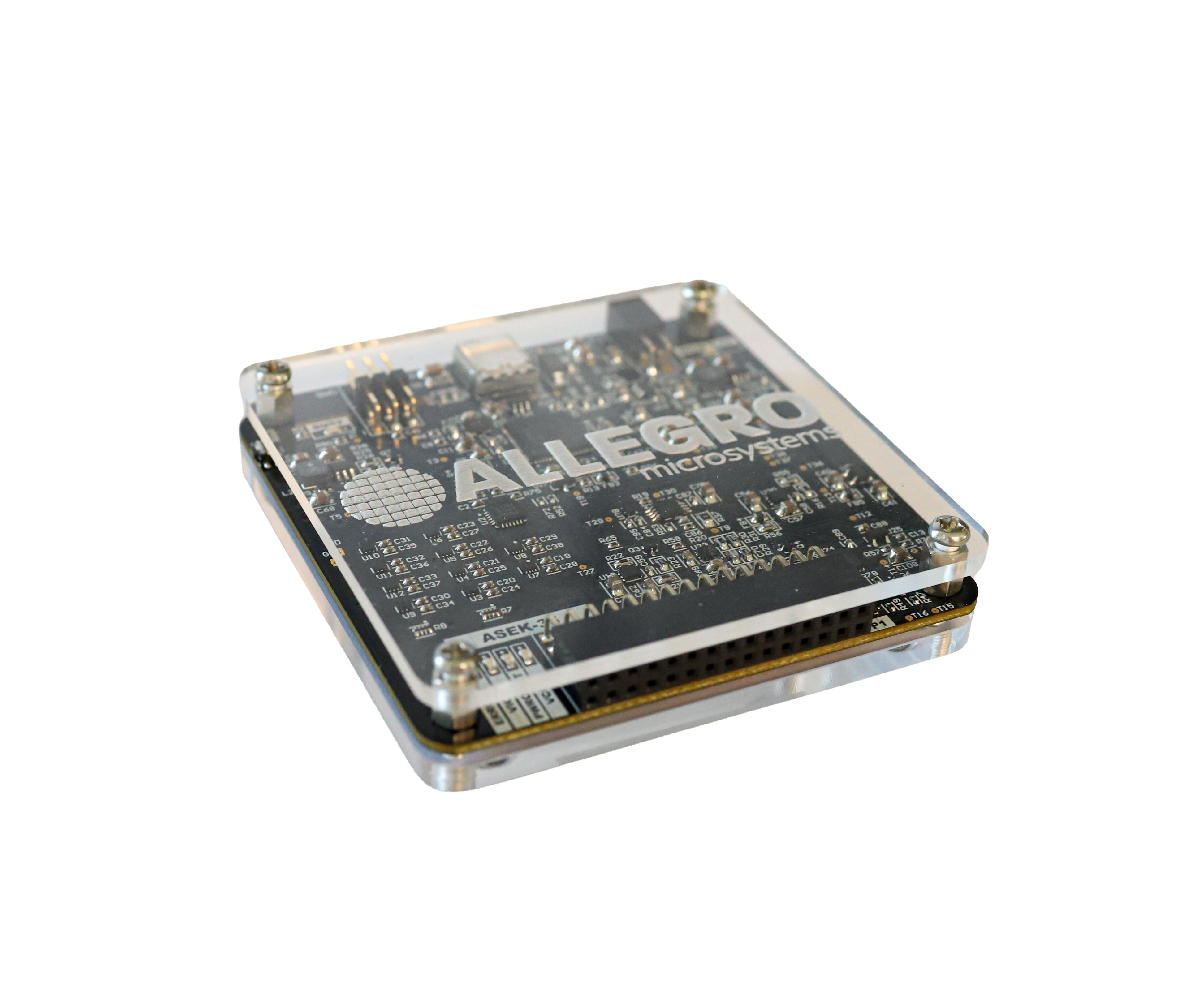

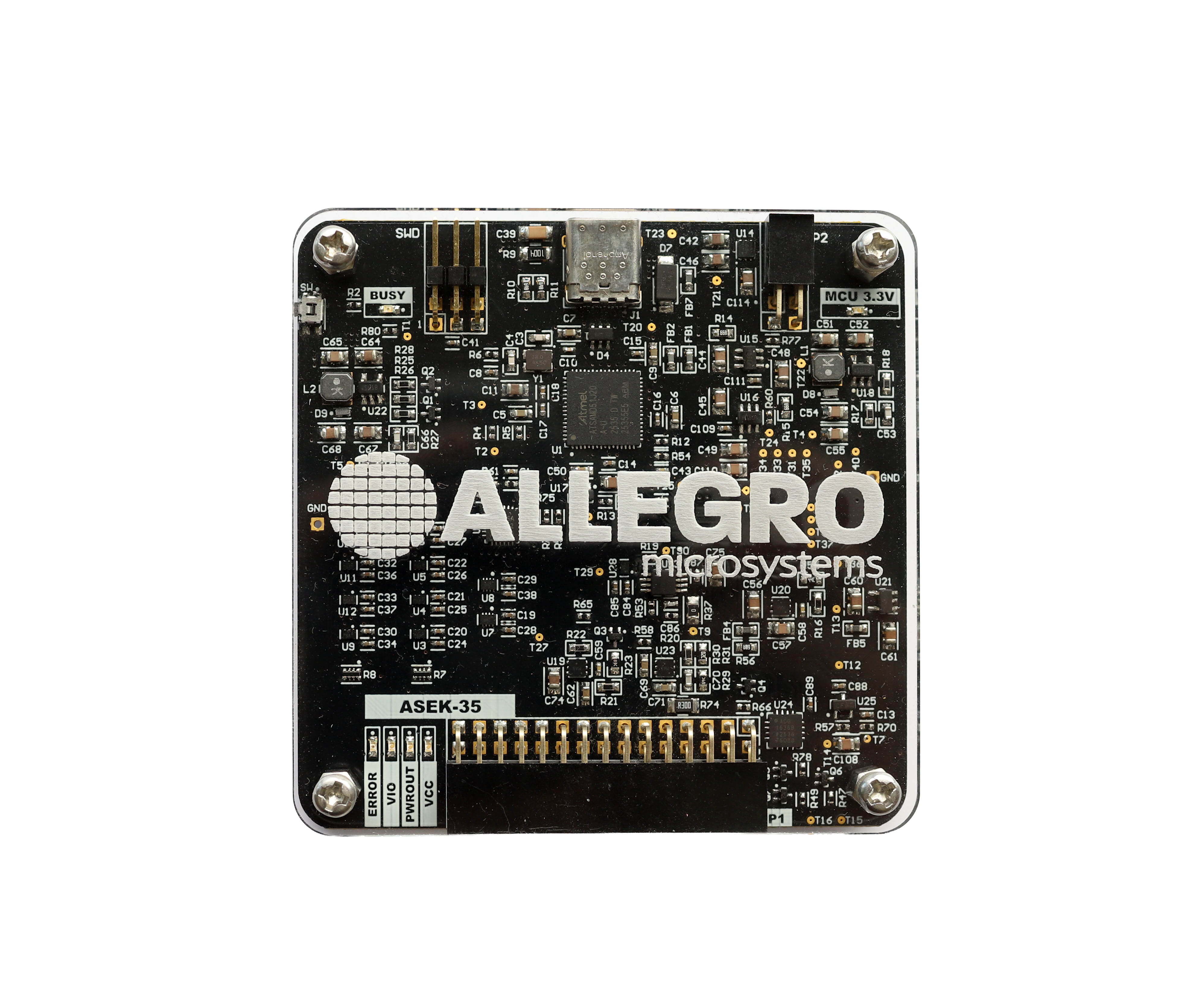

ASEK-35 Programmer
The ASEK‑35 is a dedicated programmer for the Allegro programmable current sensor portfolio. It acts as the main evaluation interface, providing a reliable communication link between the sensor and its GUI (Graphical User Interface) provided by Allegro MicroSystems. Built for fast and precise current sensor calibration.
Product Details
Product Details
Top Features
Purpose-Built for Current Sensors
- High-precision calibration of a sensor by "Two-Point Programming"
- Supports in system programming within the customer’s hardware architecture.
Broad Protocol Support
- Allegro Manchester protocol, I²C, SPI, UART, SENT

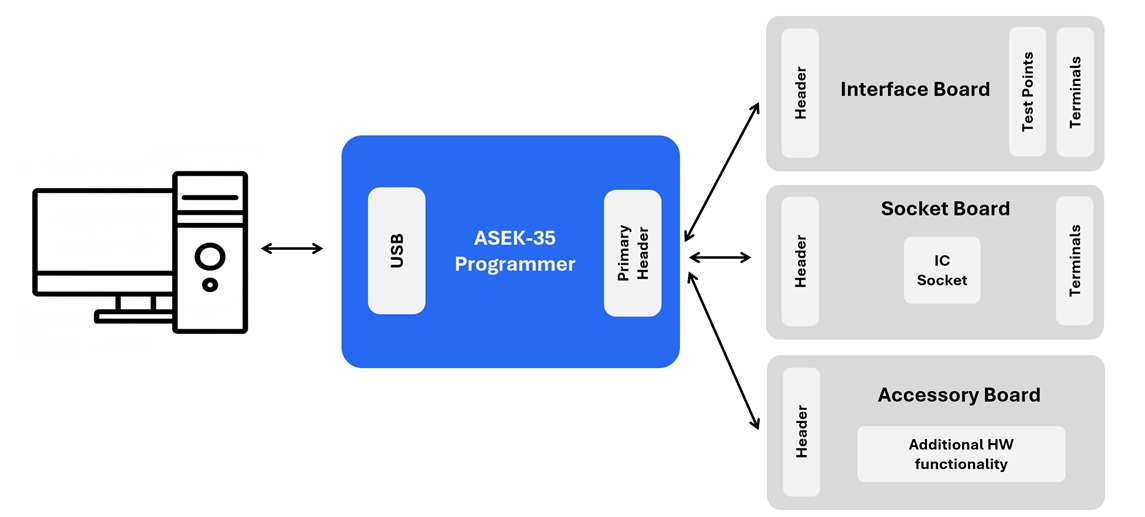

Modular & Robust Hardware Architecture
- Modular design enables functional expansion via Interface and Accessory Boards
- Supports programming of multiple ICs using the ASEK‑35‑INT‑02 multiplex interface board
- Built‑in self diagnostics and ESD protection
- USB‑powered with simple USB‑based firmware updates
Faster Development
- Accelerated development with universal programming software and graphical interface
- Unified software layer across the entire ASEK-3X portfolio
ASEK-35 Unboxing
Allegro MicroSystems presents a comprehensive guide for setting up the ASEK-35 Programmer, designed specifically for current sensors. This video details the components included in the box, such as the USB cable and documentation, and describes how to connect the hardware using various boards. It also walks viewers through downloading the necessary software to begin programming and calibrating sensors efficiently.
0:00
Interface Boards
Interface boards provide a flexible, universal hardware interface for all supported ASEK-35 current sensors. Refer to Table 1 in the ASEK-35 Hardware Selection Guide for supported part numbers and wiring configurations. Each board offers specific capabilities and compatible sensor listings. They are well suited for connecting sensors mounted on a demo board or within a customer application using an external wire harness connected to the interface board terminals.
| Board Part Number | Description | Buy Now |
|---|---|---|
| Board Part NumberASEK-35-INT-01 | DescriptionSingle-sensor Interface Board | BuyBuy Now |
| Board Part NumberASEK-35-INT-02 | DescriptionFour-devices multiplexing Interface Board | Buy NowBuy Now |
| Board Part NumberASEK-35-INT-03 | DescriptionPrototyping Interface Board | Buy NowBuy Now |
Accessory Boards
Accessory boards expand the hardware functionality of the ASEK-35 programmer. These purpose-built boards provide dedicated support for specialized tasks, such as calibration and hardware verification. For example, the ASEK-35-ACC-CAL accessory board is recommended for high-accuracy calibration of all ASEK-35 ADC and DAC channels.
| Board Part Number | Description | Buy Now |
|---|---|---|
| Board Part NumberASEK-35-ACC-CAL | DescriptionCalibration Board for the ASEK-35 Programmer | BuyBuy Now |
