APEK85110KNH-01-T-MH Evaluation Board

AHV85110 Self-Powered Isolated GaN FET Driver with Integrated Bias Supply

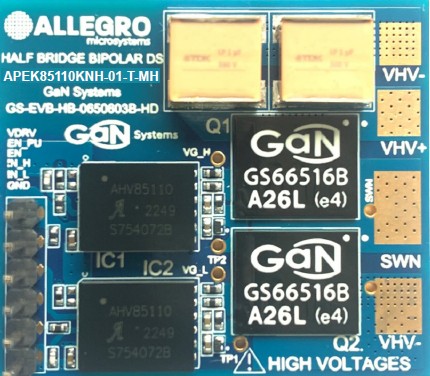

The Allegro MicroSystems Half-Bridge Driver-Switch APEK85110KNH- 01-T-MH is a demonstration board containing two APEK85110KNH GaN FET drivers and two GaN FETs configured in a half-bridge configuration.

Features

Contents

The APEK85110KNH-01-T-MH, APEK85110KNH-05-T-MH and APEK85110KNH-06-T-MH can be used to perform double-pulse tests, or to interface the half bridge to an existing LC power section, both as shown below. The isolated APEK85110KNH driver does not require secondary side power or bootstrap components. Gate drive power is supplied to the secondary side from the primary side supply voltage VDRV. The amplitude of the gate drive can be varied by changing VDRV between 10.8 V and 13.2 V.
  • APEK85110KNH-01-T-MH evaluation board
  • APEK85110KNH-05-T-MH evaluation board
  • APEK85110KNH-06-T-MH evaluation board
