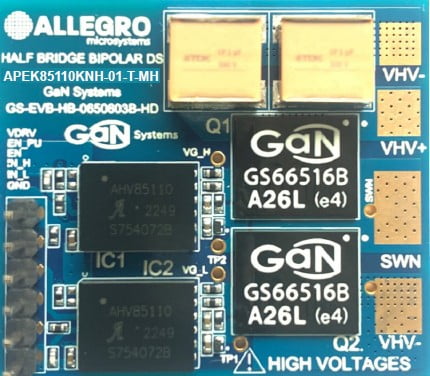

The Allegro MicroSystems Half-Bridge Driver-Switch APEK85110KNH- 01-T-MH is a demonstration board containing two APEK85110KNH GaN FET drivers and two GaN FETs configured in a half-bridge configuration.
Product Details
Product Details
Top Features
- The APEK85110KNH can be used to perform double-pulse tests or to interface the half bridge to an existing LC power section.
- The isolated driver does not require secondary side power or bootstrap components.
- Gate-drive power is supplied to the secondary side from the primaryside supply voltage VDRV.
- The amplitude of the gate drive can be varied by changing VDRV between 10.8 V and 13.2 V
Supported Products:
Content
- APEK85110KNH-01-T-MH evaluation board
- APEK85110KNH-05-T-MH evaluation board
- APEK85110KNH-06-T-MH evaluation board
