1MHz Bandwidth, High Accuracy Isolated Current Sensor with Overcurrent Fault Detection

CT431

CT431: 1MHz Bandwidth, High Accuracy Isolated Current Sensor with Overcurrent Fault Detection Product Image

Description

Top Features

Typical Applications

Packaging

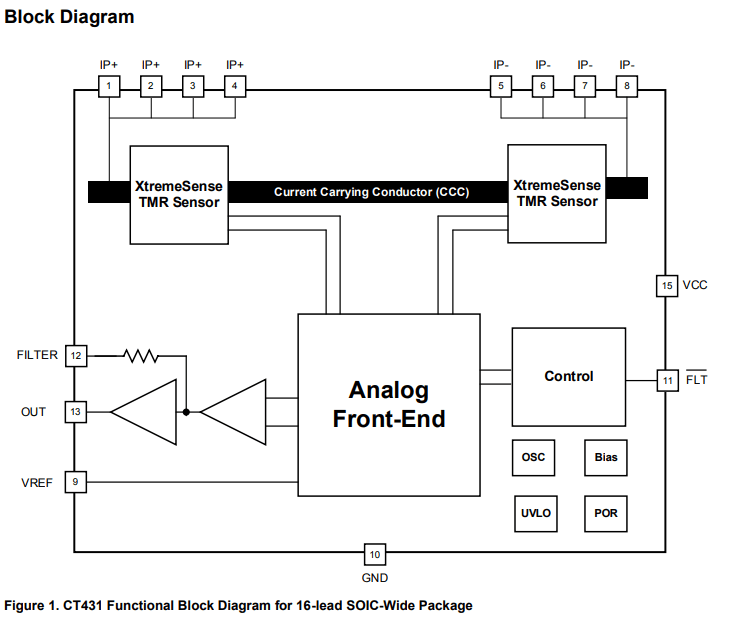

The CT431 (VCC = 3.3 V) is a high bandwidth and ultra-low noise integrated contact current sensor that uses Allegro MicroSystems’ patented XtremeSense™ TMR technology to enable high accuracy current measurements for many consumer, enterprise, and industrial applications. It supports eight (8) current ranges where the integrated current carrying conductor (CCC) will handle up to 65 A of current and generates a current measurement as a linear analog output voltage. It achieves a total output error of less than ±1.0% full-scale (FS) over voltage and the full temperature range.

Fast response with a 1 MHz bandwidth and 300ns response time. High signal-to-noise (SNR) with ultra-low noise of 9.5 mARMS.  Integrated common mode field rejection of -54 dB to ensure stray fields do not impact measurements in the working application.  The CT431 has an integrated over-current detection (OCD) circuitry to identify out of range currents which is output on the fault pin (FLT#).  The FLT# is an open drain, active LOW digital signal.

The CT431 is offered in an industry standard 16-lead SOIC-Wide package that is “green” and RoHS compliant. Also available in 5.0 V version as CT430.

  • Total Error Output: ±0.5% FS
  • 300 ns Response Time, 1 MHz Bandwidth
  • Noise as Low as 9.5 mARMS
  • Integrated 0.5 mΩ Conductor
  • VCC = 3.3 V
  • Common Mode Field Rejection: -54 dB
  • Rated Isolation Voltage: >5 kVRMS
  • UL/IEC 62368-1 and UL1577 Certification
  • IEC 61000-4-5 Certified
  • AC or DC Current Range:
    • +20.0 ADC / ±20.0 APK
    • +30.0 ADC / ±30.0 APK
    • +50.0 ADC / ±50.0 APK
    • +65.0 ADC / ±65.0 APK
  • 16-lead SOIC-Wide package
  •  8mm creepage package

The CT431 is offered in an industry standard 16-lead SOIC-Wide package that is “green” and RoHS compliant.
