隧道磁阻 (TMR) 技术
Discover the next generation of magnetic sensing
Efficient Power Conversion
Accurately measures the full dynamic range and provides a cleaner signal.
Adoption of Wide Bandgap Transistors
Wide bandgap transistors such as GAN and SiC require high bandwidth current sensors which XtremeSense TMR achieves without sacrificing accuracy and resolution.
Reduce the Energy Footprint
Delivers the lowest power consumption in any magnetic sensing product category.
0:00
TMR is an ideal fit for high growth industries such as automotive, industrial and consumer goods that require higher accuracy, greater bandwidth and lower power consumption.
At the heart of XtremeSense TMR technology is a thin-film magneto-resistive device, which is called a “Magnetic Tunnel Junction” (MTJ). In its simplest form, the MTJ consists of two electric-conducting magnetic layers on either side of a thin but highly robust insulating layer. One magnetic layer has a fixed magnetic moment direction, while the other can change freely to follow the direction of the local magnetic field.

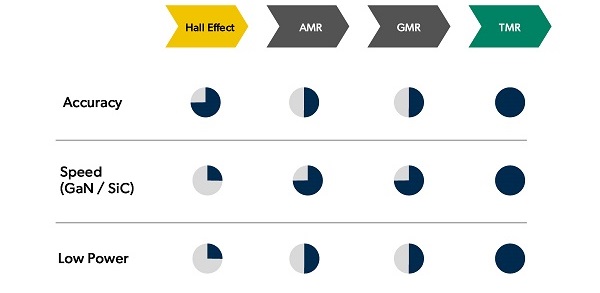

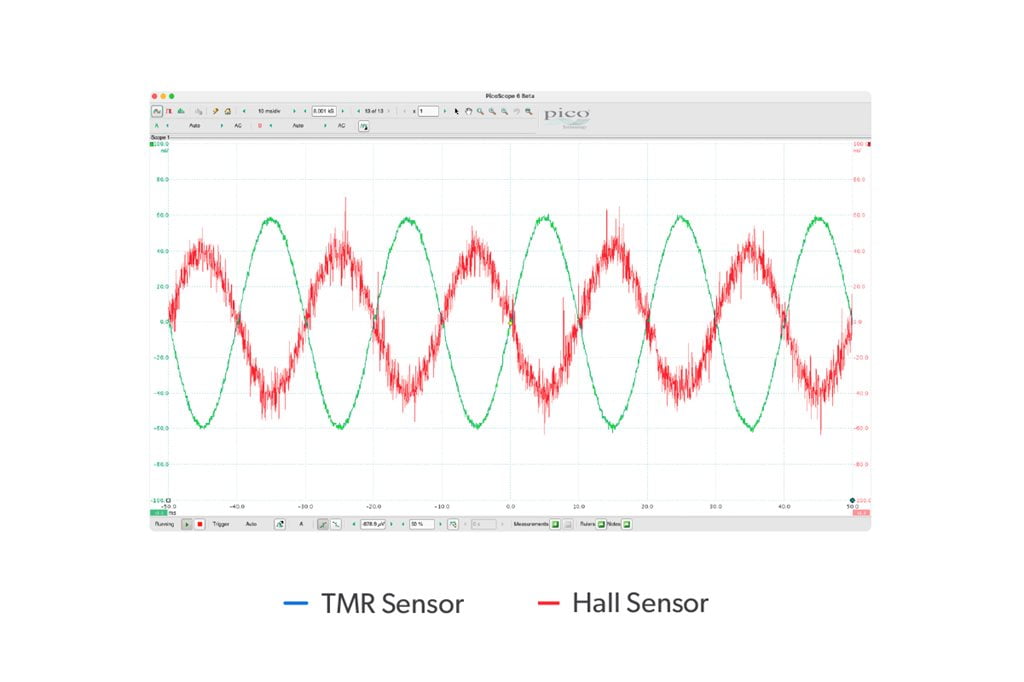

For more information about the performance advantages of TMR versus other magnetic sensing technologies, please read our From Hall Effect to TMR application note.
Dive into the electric current flow that creates the TMR advanced sensor and makes TMR possible.

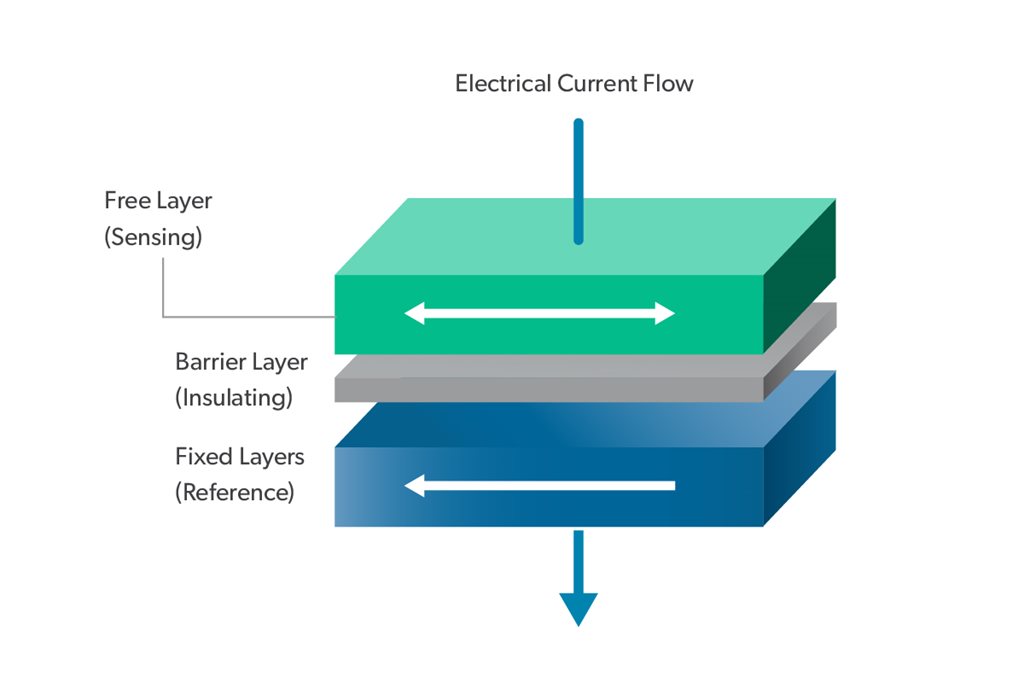

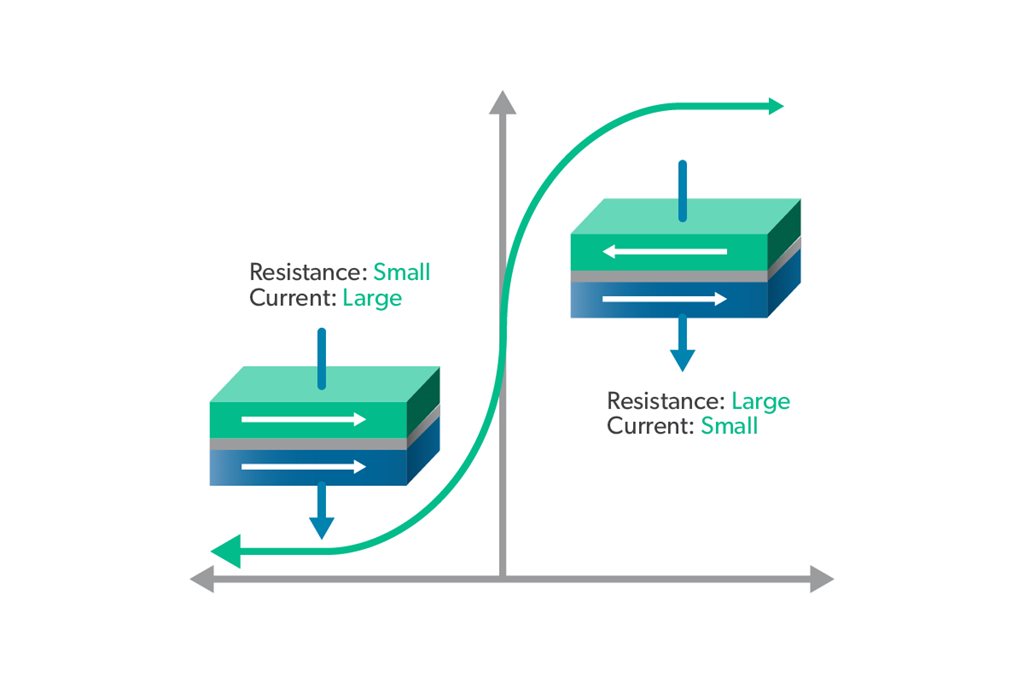

The relative magnetization direction of the Free Layer and the Reference Layer determines the resistance of the MTJ. A parallel magnetization direction achieves the lowest possible resistance level. The anti-parallel magnetization direction enables the highest possible resistance level.
This variation in electrical resistance is then immediately detected and amplified to accurately sense the local magnetic field. This feature creates the TMR advanced sensor with higher sensitivity, lower power consumption, and stable characteristics.
TMR sensors more accurately measure the full dynamic range. These sensors have excellent working dynamic range, with high linearity, low hysteresis, and high sensitivity characteristics (that is, the magneto-resistive response curve has a steep slope).
Ready to experience the power of TMR? Contact sales and explore Allegro's extensive portfolio.
Thank You
One of our solution experts will be in touch with you shortly. Keep reading to learn more about our industry leading solutions.
Documentation & Resources
OnDemand Webinar
Precision Angle Sensing for Servo Motor Control and Robotics
Discover how Allegro MicroSystems' cutting-edge angle sensing solutions can enhance motor control, reduce maintenance, and improve machine precision. Watch today and take your motor control systems to the next level!
Blog

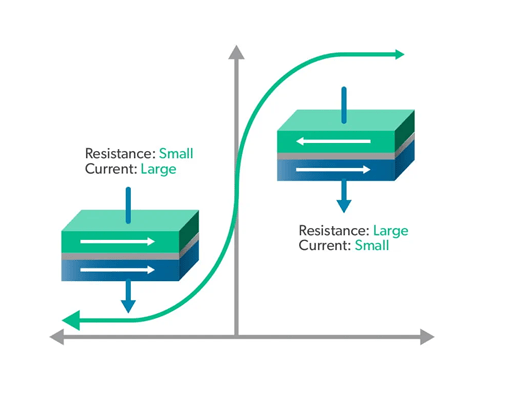

什么是 TMR？
在不断发展的技术进步形势下，有一个概念因其彻底改变各个行业的潜力而脱颖而出：隧道磁阻 (TMR) 技术。
Video
All About Circuits Tech Chat: The Next Generation of Magnetic Sensing with XtremeSense TMR Technology
Explore Allegro’s latest advancements in TMR magnetic sensing technology as All About Circuits' Dale Wilson chats with Ali Alaoui, Product Line Manager for Sensor Products at Allegro MicroSystems.
Blog
XtremeSense TMR 技术如何促进高效应用
现代应用需要功能更强大的解决方案，例如宽带隙 (WBG) 功率器件，从而提高了电流感应的性能要求。
Blog

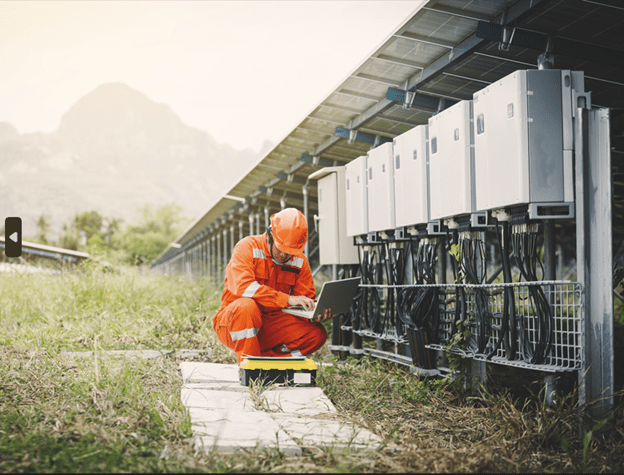

随着需求的增长，太阳能逆变器将面临哪 5 大挑战？
随着对太阳能的需求不断增长，对于太阳能逆变器的需求也随之增长，太阳能逆变器在将太阳能电池板产生的直流电 (DC) 转换为交流电 (AC) 方面发挥着至关重要的作用。
Blog

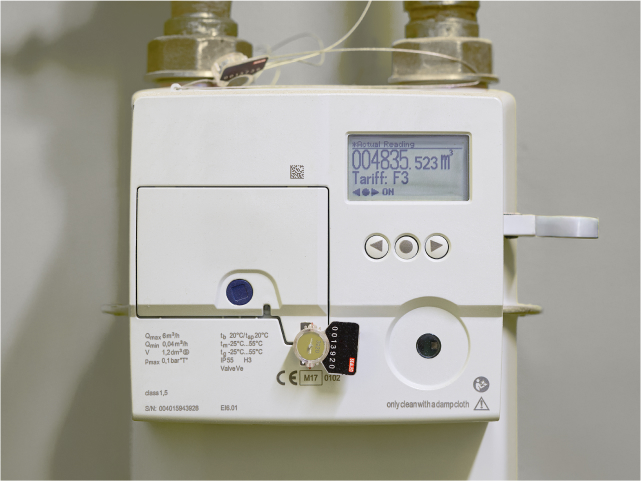

The Power of Precision: Revolutionizing Switches and Latches with TMR Technology
