1MHz Bandwidth, High Accuracy XtremeSense™ TMR Isolated Current Sensor with Overcurrent Fault Detection

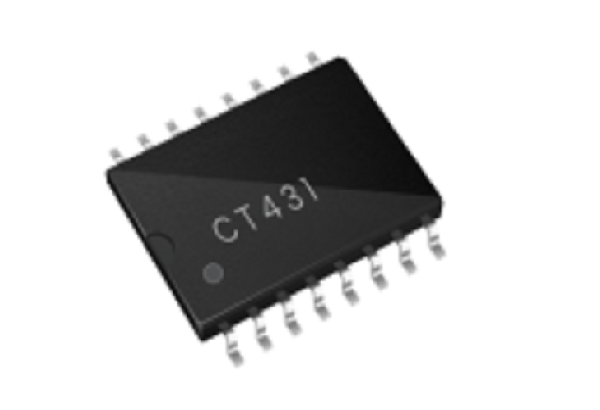

CT431

The CT431 (VCC = 3.3 V) offers high-accuracy XtremeSense TMR current sensing with ultra-low noise, a fast 300ns response time, 5kV isolation, and an integrated current carrying conductor (CCC) for simplified design. Includes integrated overcurrent detection for enhanced system protection.

View Datasheet

Product Details

Top Features

Total Error Output: ±0.5% FS
300 ns Response Time, 1 MHz Bandwidth
Noise as Low as 9.5 mARMS
Integrated 0.5 mΩ Conductor
VCC = 3.3 V
Common Mode Field Rejection: -54 dB
Rated Isolation Voltage: >5 kVRMS
UL/IEC 62368-1 and UL1577 Certification
IEC 61000-4-5 Certified
AC or DC Current Range:
- +20.0 ADC / ±20.0 APK
- +30.0 ADC / ±30.0 APK
- +50.0 ADC / ±50.0 APK
- +65.0 ADC / ±65.0 APK
16-lead SOIC-Wide package
8mm creepage package

Part Number Specifications and Availability

Allegro's XtremeSense™ TMR technology

Superior magnetic sensitivity, low power consumption, and compact size compared to other technologies, driving innovation in applications like renewable energy, electric vehicles, and consumer electronics.
