A1308-9:采用小型超薄表面安装封装且带模拟输出的线性霍尔效应传感器 IC

Description

线性输出霍尔效应传感器的新应用(如位移和角位等)要求更高的精确度和更小的封装尺寸。Allegro A1308 和 A1309 线性霍尔效应传感器经过特别设计,满足这两个要求。这些温度稳定期间提供表面安装与通孔封装选择。

通过线端优化提高每个器件的精度。每个器件均配有非易失性内存,用于优化给定应用或电路的灵敏度和静态电压输出(QVO:磁场消失时输出)在 Allegro 线端测试中对温度系数进行编程,以实现高灵敏度和 QVO,A1308 和 A1309 还可在整个工作温度范围内实现最佳性能。

这些成比例霍尔效应传感器 IC 提供与所施加的磁场成比例的电压输出。该静态电压输出。静态电压输出可调节大约 50% 的电源电压。

凭借其各项特色功能,这些线性器件非常适合要求高准确度的汽车和工业应用,并能在 –40°C 到 150°C 的温度范围内正常工作。

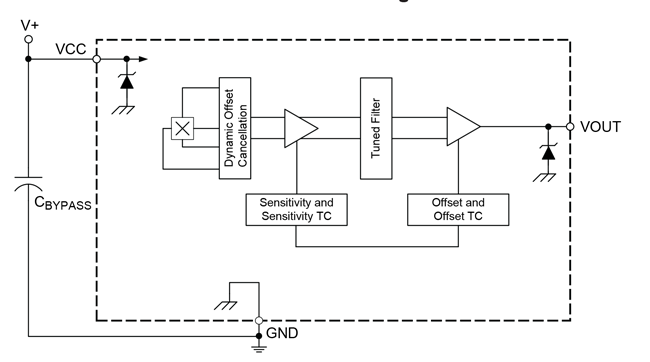

各 BiCMOS 单片电路均整合可降低霍尔元件固有灵敏度漂移的霍尔元件温度补充电路、小信号高增益放大器、箝位低阻抗输出级和专有动态偏移消除技术。

A1308 和 A1309 提供两种封装形式选择。LH 是 SOT-23W 微型扁平封装,适合表面安装应用。UA 是超小型 3 引脚单列封装 (SIP),适合通孔安装。这两种封装都是无铅 (Pb) 封装,引脚框采用 100% 雾锡电镀。

Top Features

  • 5 V电源操作
  • Allegro™ 编程的 QVO 温度系数有助于提高精确度
  • 小型封装选择
  • 高带宽低噪声模式输出
  • 高速斩波设计可最大限度地减少 QVO 在工作温度范围内的漂移
  • 温度稳定的静态电压输出及灵敏度
  • 温度周期性变化后精确的可恢复性
  • 输出电压夹可以提供短路诊断功能
  • 欠压锁定 (UVLO)
  • 宽环境温度范围:–40°C 至 150°C
  • 抗机械应力
  • 更高的 EMC 性能,满足严格的汽车应用要求

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant
Part Composition /
RoHS Data
Comments Samples Check Stock
A1308KUATN-1-T n/a -20°C to 85°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
A1308KUATN-2-T n/a -20°C to 85°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
A1308KUATN-3-T n/a -20°C to 85°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
A1308KUATN-5-T n/a -20°C to 85°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
A1308LLHLT-05-T 3-lead SOT -40°C to 150°C -- View Data Contact your
local sales rep
Check
Distributor Stock
A1308LLHLT-1-T 3-lead SOT -40°C to 150°C -- View Data Contact your
local sales rep
Check
Distributor Stock
A1308LLHLT-2-T 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
A1308LLHLT-3-T 3-lead SOT -40°C to 150°C -- View Data Contact your
local sales rep
Check
Distributor Stock
A1308LLHLT-5-T 3-lead SOT -40°C to 150°C -- View Data Contact your
local sales rep
Check
Distributor Stock
A1308LLHLX-05-T 3-lead SOT -40°C to 150°C -- View Data Contact your
local sales rep
Check
Distributor Stock
A1308LLHLX-1-T 3-lead SOT -40°C to 150°C -- View Data Contact your
local sales rep
Check
Distributor Stock
A1308LLHLX-2-T 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
A1308LLHLX-3-T 3-lead SOT -40°C to 150°C -- View Data Contact your
local sales rep
Check
Distributor Stock
A1308LLHLX-5-T 3-lead SOT -40°C to 150°C -- View Data Contact your
local sales rep
Check
Distributor Stock
A1309LLHLT-9-T 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
A1309LLHLT-RP9-T 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
A1309LLHLX-9-T 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
A1309LLHLX-RP9-T 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock

Allegro 的产品不允许在任何由于 Allegro 产品的合理故障造成人身伤害的装置或系统中使用,包括但不限于生命支持装置或系统。

Packaging

A1308-9 封装
