APM81803: 40 V, 3 A, Synchronous Buck Regulator Module with Low EMI and 6 μA Quiescent Current

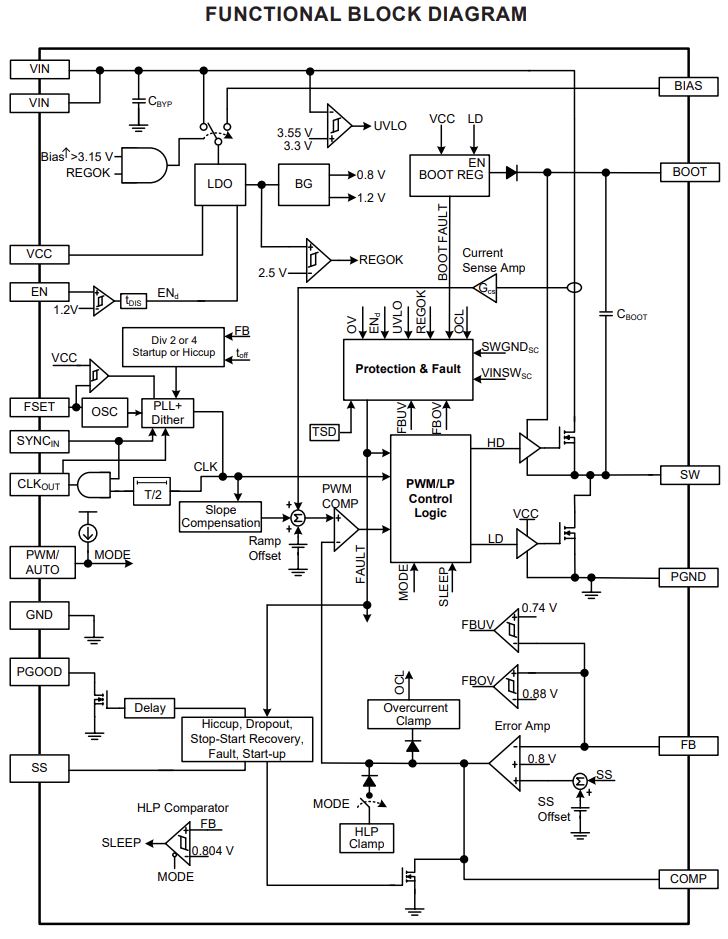

Description

 The APM81803 is a highly integrated, 3A, low EMI, DC-DC regulator module that satisfies demanding power delivery requirements. Allegro's innovative packaging technology allows for the integration of the converter along with EMI capacitors to offer a power supply that will meet very stringent EMC specifications without the need for additional EMI filters.

Due to the high level of integration, the APM81803 minimizes the number of additional components required, enabling a high-powered DC-DC converter to be located in very space-constrained applications.  The APM81803 is automotive qualified to a Grade 0 temperature rating; this regulator will survive harsh environments without degradation.

The APM81803 are automotive AEC-Q100 qualified and presented in a compact, thermally enhanced 4 mm x 4 mm x 2mm QFN-24 package with wettable flanks.

Top Features

  • AEC-Q100 Grade 0 Qualified
  • Wide VIN range, 3.5V to 36V operation with transients up to 40V
  • Ultra-Low EMI with integrated input and bootstrap capacitors
  • Low Power Mode: 6µA Quiescent Current
  • Robust FMEA: pin open/short and component faults

Typical Applications

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant
Part Composition /
RoHS Data
Comments Samples Check Stock
APM81803KNBJSR 24-lead QFN -40°C to 125°C -- View Data Contact your
local sales rep
Check
Distributor Stock
APM81803KNBJSR-1 24-lead QFN -40°C to 125°C -- View Data Contact your
local sales rep
Check
Distributor Stock

Allegro’s products are not to be used in any devices or systems, including but not limited to life support devices or systems, in which a failure of Allegro’s product can reasonably be expected to cause bodily harm.

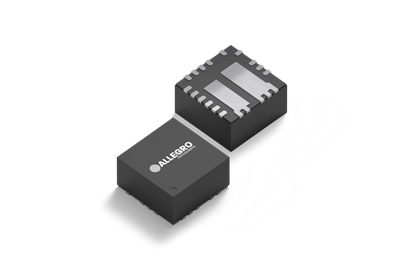

40V Synchronous Buck Regulator Packaging Image

Packaging

The APM81803 are automotive AEC-Q100 qualified and presented in a compact, thermally enhanced 4 mm x 4 mm x 2mm QFN-24 package (suffix NB) with wettable flanks.
