シャントのリプレイス: 優れた設計を実現する Allegro の磁気電流センサー
シャントのリプレイス: 優れた設計を実現する Allegro の磁気電流センサー
20年以上にわたる技術の進歩と磁気電流センサーの進化により、磁気電流センサーは従来のシャントベースの電流センサー回路に代わる魅力的な選択肢となっています。効率性と絶縁性に優れ、帯域幅が広く、小型ながらも全体的な性能強化を実現したことで、エンジニアや設計者は、これらのセンサーを電子システムに迅速かつ容易に統合できます。
パッケージングの革新: 設計者やエンジニアは、コンパクトでエネルギー効率に優れた電子システムを生み出すという課題に常に直面しています。シャントレス センサー ソリューションを統合した Allegro の革新的なパッケージは、この課題に直接対応します。外部シャント抵抗器やその他のディスクリート コンポーネントを必要としないため、設計者やエンジニアは、効率を向上させながら、コンポーネント数と回路全体のサイズを大幅に削減できます。
- コンパクトな設計: 一体型磁気電流センサーの大幅な小型化により、貴重な基盤スペースを節約するとともに、部品表のコンポーネント数を削減できます。
- 熱放散の低減: 一体型磁気電流センサーのリードフレームは導体抵抗が小さいため、システムの温度が低くなります。
- 設計プロセスの簡素化: 従来のシャント抵抗回路の機能を 1 つのパッケージに統合した Allegro の技術により、コンポーネントの配置を簡素化し、設計プロセスを合理化します。
Download our application note to discover why magnetic current sensors outperform
shunt-based solutions and how they can optimize your designs.
Featured Products
ACS37220

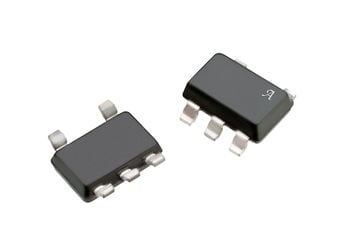

ACS37041 and ACS37042
ACS71240
ACS711
Magnetic Current Sensors Outperform Shunt-Based Solutions
Allegro's magnetic current sensor ICs offer a superior alternative to traditional shunt-based current sensing, resulting in smaller, more efficient, and cost-effective designs for applications like motor control and clean energy systems.
0:00
Evaluation Board Table
| Allegro Device | Evaluation Board(s) Name | Board Description |
|---|---|---|
|
Third party evaluation boards for the ACS37220 product family |
||
|
ACS37220 evaluation board for the ACS37220LEZATR-100B3 (±100A, 3.3V variant) |
||
|
ACS37220 evaluation board for the ACS37220LEZATR-100B5 (±100A, 5V variant) |
||
|
ACS37220 evaluation board for the ACS37220LEZATR-150B3 (±150A, 3.3V variant) |
||
|
ACS37220 evaluation board for the ACS37220LEZATR-150B5 (±150A, 5V variant) |
||
|
ACS37220 evaluation board for the ACS37220LEZATR-200B5 (±200A, 5V variant) |
||
|
Third party evaluation board for the ACS37220LEZATR-150B3 (±150A, 3.3V variant) |
||
|
Bare board compatible with ACS37041 |
||
|
Third party evaluation board for the ACS71240 (±10A, 3.3V variant) in the “EX” 3x3mm QFN package |
||
|
Bare boards compatible with ACS71240 |
||
|
Third party evaluation board for the ACS711 (±15A variant) in the “EX” 3x3mm QFN package |
||
|
Third party evaluation board for the ACS711 (±12A variant) in the “LC” SOIC-8 package |
||
|
Bare boards compatible with ACS711 |
