AEC-Q100 Qualified ±707V Reinforced Isolation 1MHz Hall-Effect Current Sensor
ACS37035
Our ACS37035 current sensor can measure DC up to 1 MHz signals and is ideal for sensing in fast control loops and power electronics utilizing fast switching frequencies while maintaining high accuracy over temperature and lifetime from its low quiescent voltage output error.
Product Details
Product Details
Top Features
- High bandwidth, 1 MHz analog output
- FAULT output for fast open drain overcurrent detection
- ±3% sensitivity error across temperature
- ±15mV quiescent voltage output offset over temperature

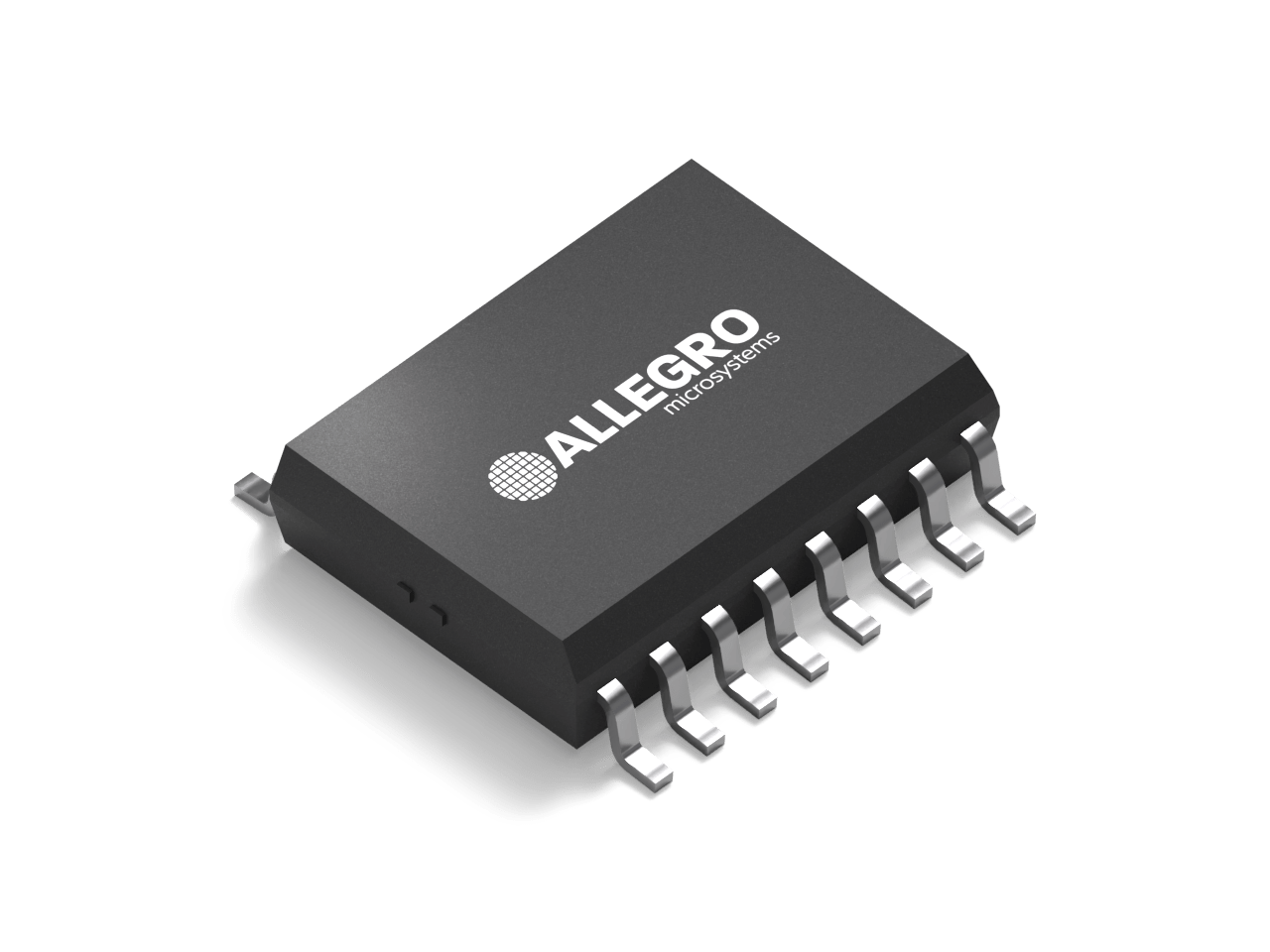

- LA SOICW-16 package supports 1000 VRMS basic isolation and 500 VRMS reinforced isolation
- AEC-Q100 Grade 1 qualified
