A19200: User-Friendly, Versatile Wheel Speed Sensor IC

High-Performance GMR AK Protocol Wheel Speed and Direction Sensor IC

Description

Top Features

Packaging

The A19200 device is a Hall-effect-based integrated circuit (IC) that provides a user-friendly and versatile solution for either magnetic encoders or ferrous targets in two-wire applications. The A19200 is offered in the UB package, which integrates the IC and a high temperature ceramic capacitor in a single over-molded SIP package. The integrated capacitor provides enhanced EMC performance reducing, and in most cases eliminating, the need for external components.

The Hall element spacing is optimized for high resolution and small diameter targets, making the A19200 ideally suited for obtaining speed information in wheel speed applications.

The A19200  is available in a lead (Pb) free 2-pin SIP (Suffix UB) package with a 100% matte tin plated leadframe.

ASIL Logo

A19200 was developed in accordance with ISO 26262:2011 as a hardware safety element out of context with ASIL B capability for use in automotive safety-related systems when integrated and used in the manner prescribed in the applicable safety manual and datasheet.
  • Integrated diagnostics and certified safety design process
  • Integrated capacitor reduces need for external EMI protection components
  • True zero-speed operation
  • Single chip sensing IC for high reliability
  • Fully synchronous digital logic with Scan and IDDQ testing
  • Application-proven algorithms for robust operation in wheel speed environments

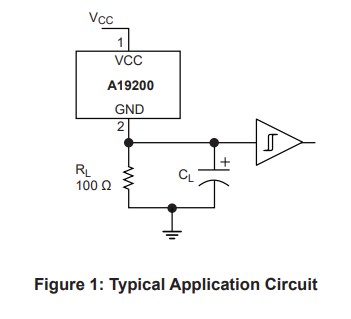

Typical Applications

Part Number Specifications and Availability

Documentation and Resources

Documentation

Filter Document Type:
All Types
All Types Application Note
Documents Found: 32
Document Type Document Name
Application Note
Fundamental Properties of Speed Sensors
