ASEK-30 Programmer

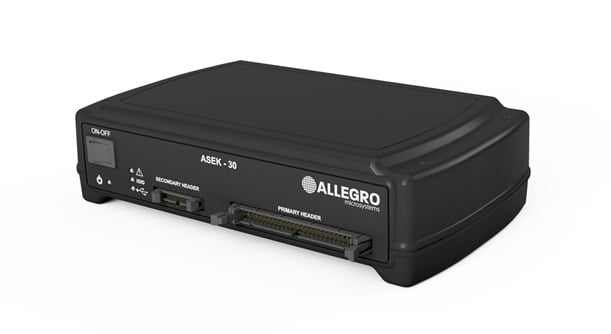

ASEK 30 Programmer Kit Image

The ASEK-30 programmer is an interface between a PC and an Allegro sensor IC. Allegro provided GUI’s and DLL’s facilitate easy access to the sensor enabling reading from, writing to, and measuring the sensor for calibration in the application.

Customer Support
Software Portal
Navigate

Description

Top Features

The ASEK-30 programmer enables in-circuit programming of Allegro sensor IC’s. Utilizing an Allegro-provided graphical user interface (GUI) the user can quickly start to evaluate and program the sensor. Hardware connections are performed using optional boards that contain sockets or soldered ICs.

For production scenarios Allegro provides a Windows DLL which contains all the required commands needed to configure and test the sensor. This DLL can be called by software written in .Net, Labview, C/C++ and more facilitating easier and faster integration via reduced software development time.

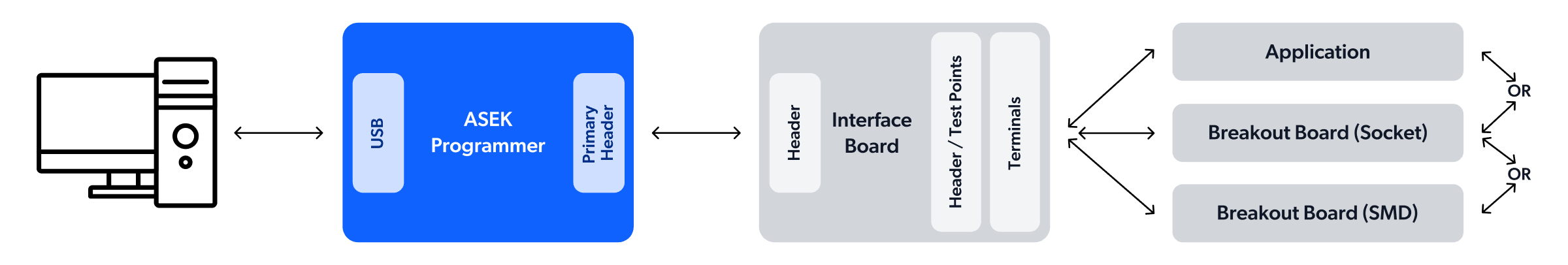

Connection to the end application is via the 50-pin locking header which enables custom cables to be created to interface to automated test equipment. Connection between the PC and ASEK-30 is performed via the USB-C port. Power to the ASEK-30 is provided by an included 5V AC/DC universal power supply.

  • Suitable for both lab evaluation and production
  • On-board protocol measurement eliminates need for other tools
    • Analog, PWM, SENT, SPI, I2C, Manchester

Easy Integration

  • The standard 2x25 pin port provides all necessary IO to interface to the sensor

Reduced Costs and Time to Market

  • Allegro provided GUI and DLL’s minimize software development efforts
  • Available socket boards allow programming the IC and then installing it

Faster Cycle Time

  • Capable of programming multiple ICs in parallel
× not found

ASEK Programmer

Position Sensors

Sensor

Package

Interface Board Required

Buy Now

Device Breakout Board

Buy Now

SensorA17802

PackageLE (TSSOP14)

Interface BoardASEK-30-INT-MPS-002

 Buy Now

Buy Now

Device Breakout BoardASEK-30-SOC-17802

 Buy Now

Buy Now

SensorA17803

PackageLE (TSSOP14)

Interface BoardASEK-30-INT-MPS-002

 Buy Now

Buy Now

Device Breakout BoardASEK-30-SOC-17802

 Buy Now

Buy Now

SensorA33020

PackageLE (TSSOP14)

Interface BoardASEK-30-INT-MPS-001

 Buy Now

Buy Now

Device Breakout BoardASEK-30-SOC-33020

 Buy Now

Buy Now

SensorA33020

PackageLE (TSSOP24)

Interface BoardASEK-30-INT-MPS-001

 Buy Now

Buy Now

Device Breakout BoardASEK-30-SOC-33020D

 Buy Now

Buy Now

SensorA33022

PackageLE (TSSOP14)

Interface BoardASEK-30-INT-MPS-001

 Buy Now

Buy Now

Device Breakout BoardASEK-30-SOC-33022

 Buy Now

Buy Now

SensorA33022

PackageLE (TSSOP24)

Interface BoardASEK-30-INT-MPS-001

 Buy Now

Buy Now

Device Breakout BoardASEK-30-SOC-33022D

 Buy Now

Buy Now

SensorA33023

PackageLE (TSSOP14)

Interface BoardASEK-30-INT-MPS-001

 Buy Now

Buy Now

Device Breakout BoardASEK-30-SOC-33020

 Buy Now

Buy Now

SensorA33023

PackageLE (TSSOP24)

Interface BoardASEK-30-INT-MPS-001

 Buy Now

Buy Now

Device Breakout BoardASEK-30-SOC-33020D

 Buy Now

Buy Now

Current Sensors

Sensor

Package

Interface Board Required

Buy Now

Device Breakout Board

SensorACS70311

PackageKT/OK (SIP4)

Interface Board RequiredASEK-30-INT-ACS-001

 Buy Now

Buy Now

Device Breakout BoardNot Required

SensorACS37610

PackageLU (TSSOP8)

Interface Board RequiredASEK-30-INT-ACS-002

 Buy Now

Buy Now

Device Breakout BoardNot Required
